Technical Specifications
Product Overview

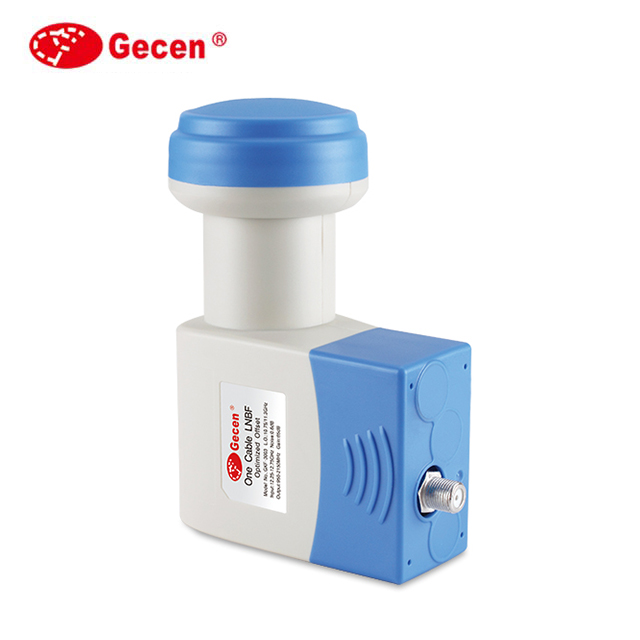

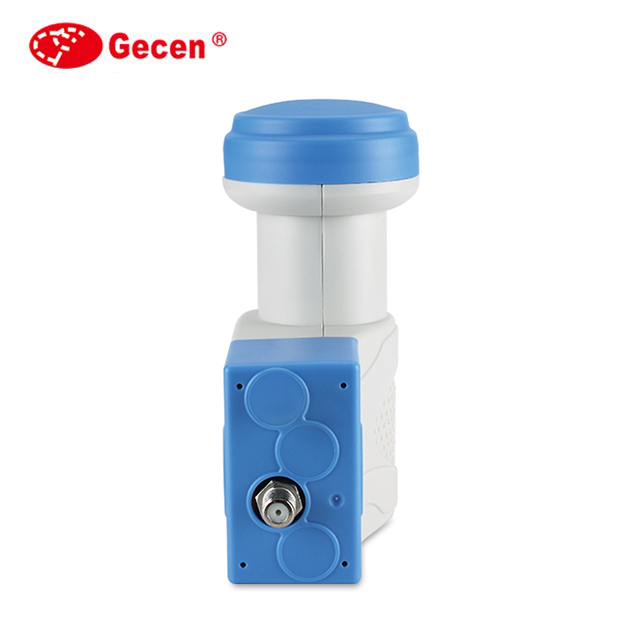

Universal One Cable Solution LNB
This advanced Universal One Cable Solution LNB is engineered for high-performance satellite signal reception. Designed to support 4K Ultra HD transmissions, it provides a reliable solution for DTH operators and modern digital broadcasting. Its optimized design ensures efficient signal conversion across the full Ku-Band range for both analog and digital systems.
Technical Specifications
- Input Frequency (Vertical)
- 12.25~12.75GHz
- Input Frequency (Horizontal)
- 12.25~12.75GHz
- Output Frequency (Vertical)
- 950~1450MHz
- Output Frequency (Horizontal)
- 1500~2000MHz
Performance Metrics
Noise Figure
0.3 dB
Noise Figure
- Gain Flatness
- ±0.5dB/26MHz
- Cross Pol. Isolation
- 25 dB
- Image Rejection
- 40 dB
Features
- Key Features
- 4K Ultra HD SupportUniversal Single Cable SolutionDTH OptimizedAnalog/Digital Reception
