Universal Ku-Band Single Cable LNB
This universal LNB provides a one-cable solution for satellite signal distribution. It supports 4K Ultra HD transmissions and full Ku-Band coverage for both analog and digital reception.
Technical Specifications
Product Overview

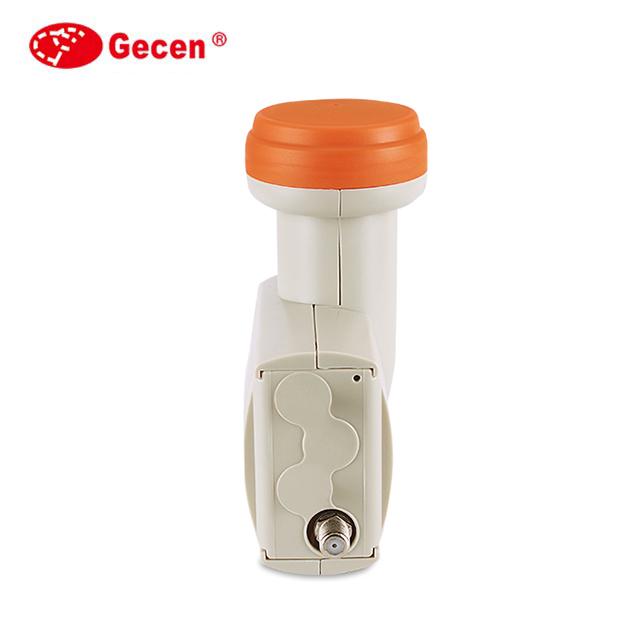

Universal One Cable Solution LNB
This advanced Universal One Cable Solution LNB is specifically engineered for DTH operators and modern satellite broadcast reception. It provides full coverage of the Ku-Band for both analog and digital signals, supporting high-fidelity 4K Ultra HD transmissions. Designed for efficiency, this unit enables simplified installation processes and reduced cabling requirements, making it an excellent choice for multi-receiver setups.
Key Features
- Core Advantages
- 4K Ultra HD SupportSingle Cable SolutionLow Noise PerformanceHigh GainKu-Band Compatible
Technical Specifications
Performance Metrics
0.6 dB
Noise Figure
20 dB
Cross POL. Isolation
40 dB
Image Rejection
Frequency Ranges
| Parameter | Vertical | Horizontal |
|---|---|---|
| Input Frequency (GHz) | 11.01-11.06 / 11.7-11.95 | 10.96-11.19 / 11.70-12.18 |
| Output Frequency (MHz) | 1785.5-1842.5 / 1900-2150 | 950.5-1187.5 / 1244-1728 |
| L.O. Frequency (GHz) | 10.012 / 13.432 | 9.225 / 9.8 |
Gain Characteristics
- Gain Flatness: ±1dB/36MHz
- Flatness gain (950-2150 MHz): ±3dB
