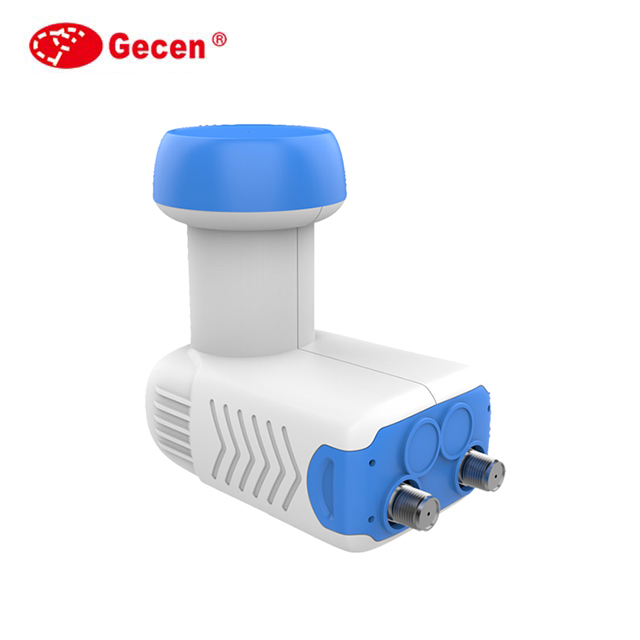

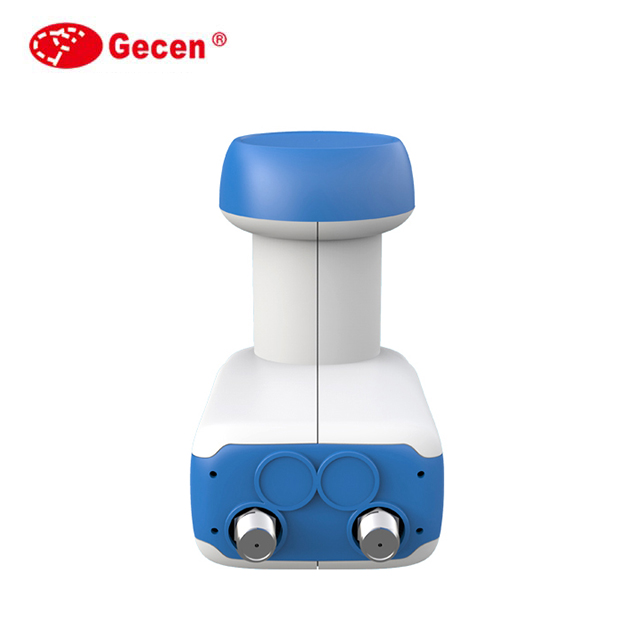

Universal Ku-Band LNB for Satellite Reception
This universal LNB is designed for satellite broadcast reception, supporting 4K Ultra HD transmissions. It offers full Ku-Band coverage for both analog and digital signals.
Technical Specifications
Product Overview
Universal Ku-Band Solution
This Universal Ku-Band LNB is an essential solution for DTH operators and high-quality satellite broadcast reception. Engineered to support 4K Ultra HD transmissions, it provides excellent performance with a low noise figure and high gain. The unit ensures full coverage of the Ku-Band, making it compatible with both analog and digital reception requirements.
Technical Specifications
- Input Frequency Range
- 11.70 - 12.75 GHz
- Output Frequency Range
- 950 - 2000 MHz
- L.O. Frequency
- 10.75 GHz
Performance Metrics
- Gain Flatness
- ±0.5dB/27MHz
- Polarization Isolation
- 20 dB
- Image Rejection
- 40 dB
- Output VSWR
- 2.0:1
Stability and Environment
L.O. Frequency Stability
- ±1.0 MHz (Max) @ +25°C
- ±2.0 MHz (Max) @ -30°C ~ +70°C
Application
- Supported Broadcast Standards
- 4K Ultra HDAnalogDigitalDTH
