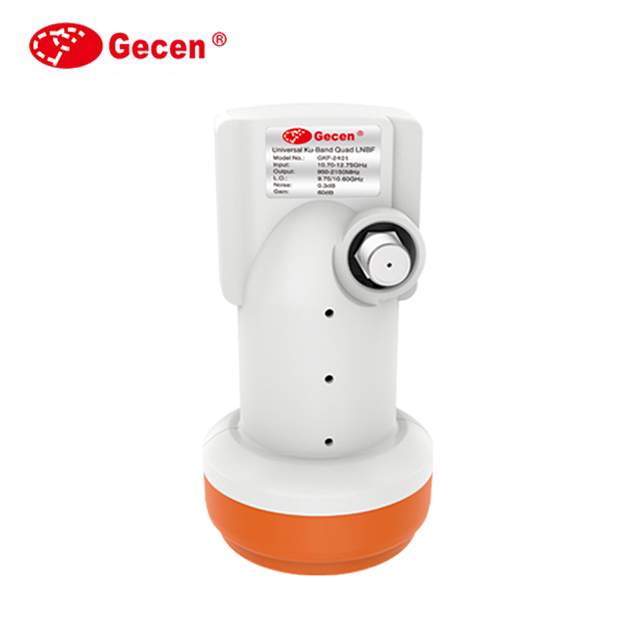

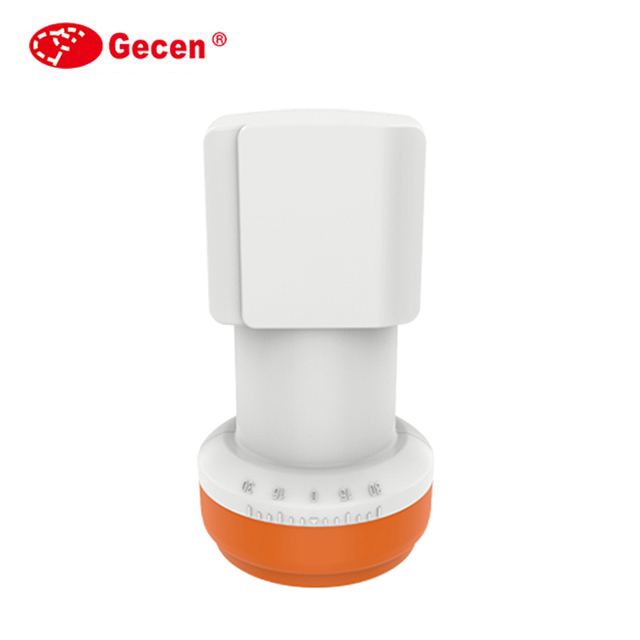

Universal Ku-Band LNB
This universal linear single Ku-band LNB is DVB-S2 compliant and ideal for satellite signal reception. It features a UV-resistant weather protection housing and is extremely heat and cold resistant.
Technical Specifications
Product Overview
Universal Ku-Band LNB
This high-performance Universal Ku-Band LNB is designed for professional satellite signal reception, offering full compliance with DVB-S2 standards for both HD and UHD broadcasts. Engineered for durability, it features a UV-resistant weather-protected housing and a custom-fit cap to ensure reliability in extreme temperatures. With a low noise figure, high frequency stability, and excellent cross-pol isolation, this unit provides clean, consistent signal conversion for demanding satellite setups.
Key Features
- Key Highlights
- DVB-S2 CompliantHD & UHD ReadyLow Noise FigureEnergy EfficientUV-ResistantWeatherproof
Performance Metrics
Performance Specifications
20 dB
Cross-Pol Isolation
40 dB
Image Rejection
100 mA
DC Current Consumption
0 dBm
P1dB
Technical Specifications
Frequency & Signal Data
| Parameter | Low Band | High Band |
|---|---|---|
| Input Frequency | 10.70-11.70 GHz | 11.70-12.75 GHz |
| Output Frequency | 950-1950 MHz | 1100-2150 MHz |
| L.O. Frequency | 9.75 GHz | 10.60 GHz |
- Frequency Stability
- 1 MHz
- Output VSWR
- 2.0:1
