Universal Drill Bit Sharpener Grinding Machine
This drill bit sharpener features a camera for setting and measuring drill grinding. It accurately and rapidly grinds drill bits with flat relief angles and point thinning, ensuring high accuracy and extended bit life.
Technical Specifications
Overview
Precision Drill Bit Sharpening

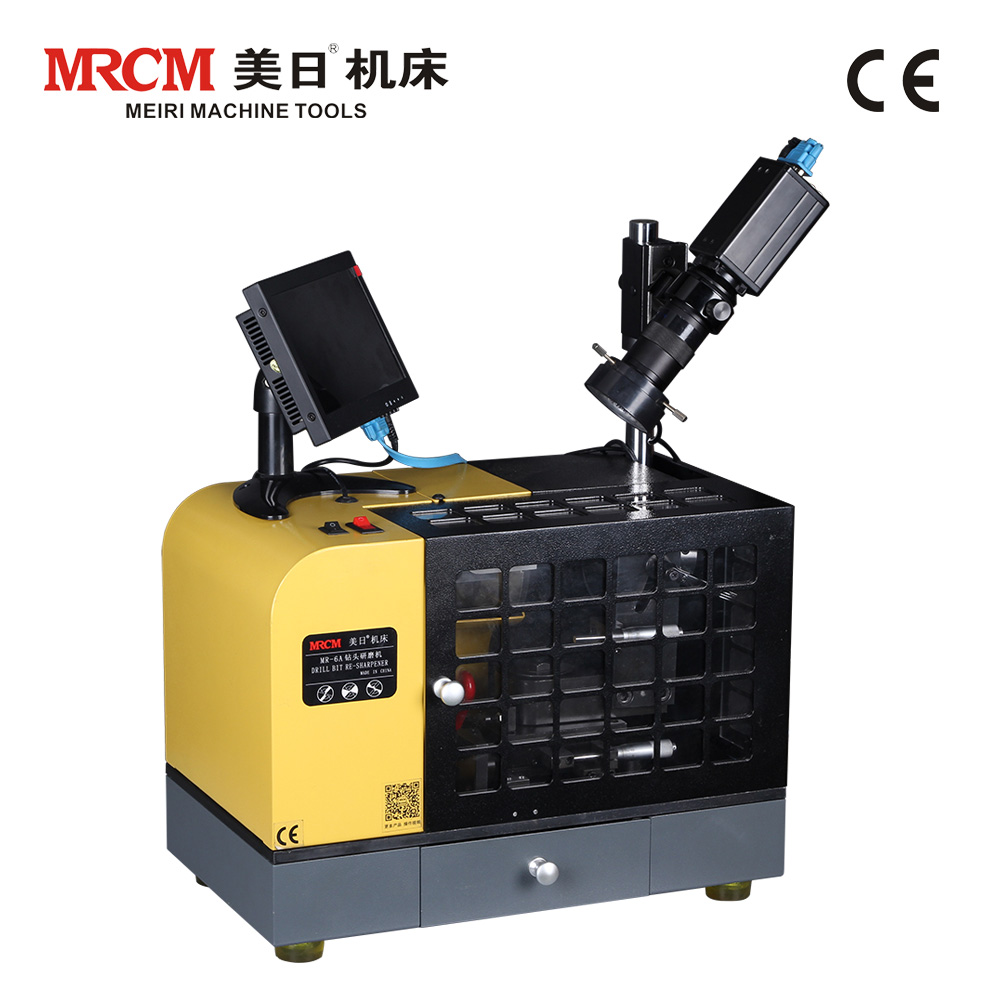

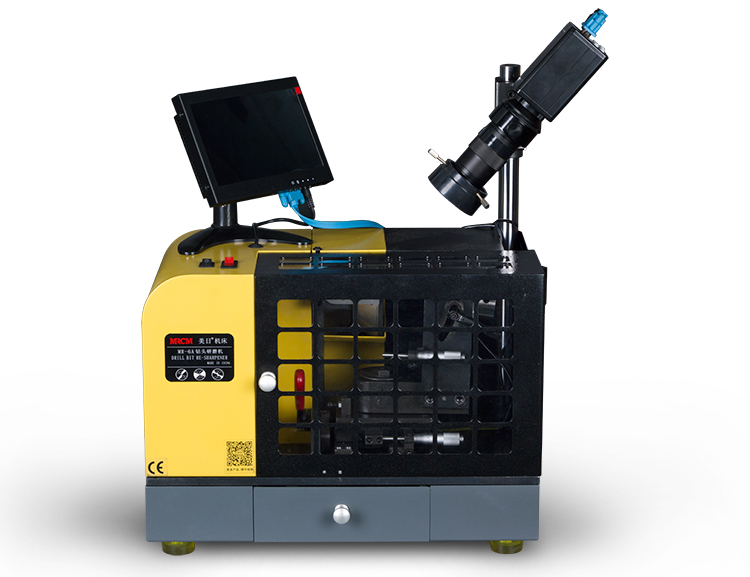

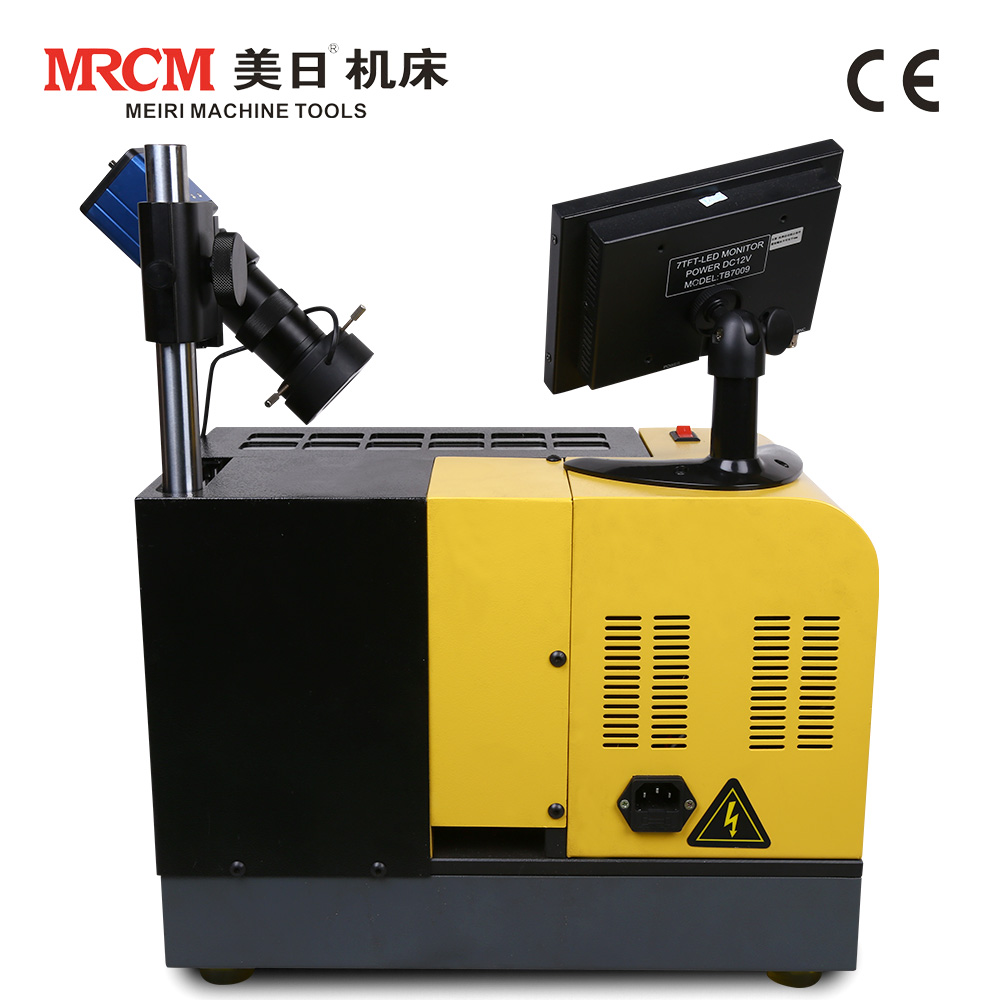

The MR-6A is a high-precision grinding machine engineered for rapid and accurate sharpening of drill bits. Featuring an integrated camera and monitor system, it allows for meticulous visual inspection and alignment during the sharpening process. This machine is designed to improve drilling efficiency, extend tool life, and maintain consistent cutting performance for various industrial applications.
Technical Specifications
- Grinding Range
- 1mm - 6mm
- Point Angle
- 90° - 150°
- Rotation Speed
- 4400 rpm
- Motor Power
- 250 W
- Power Supply
- AC 220V
Dimensions and Weight
Dimensions and Weight
40 kg
Weight
65 cm
Length
35 cm
Width
35 cm
Height
Equipment

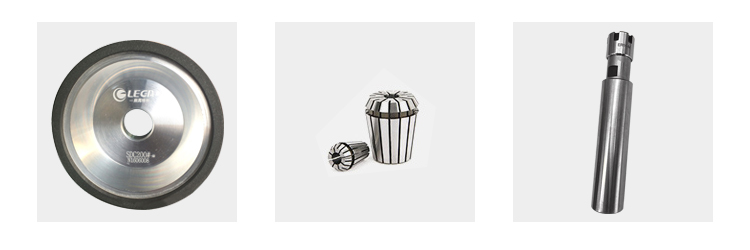

Standard Equipment
- CBN Grinding Wheel (for HSS)

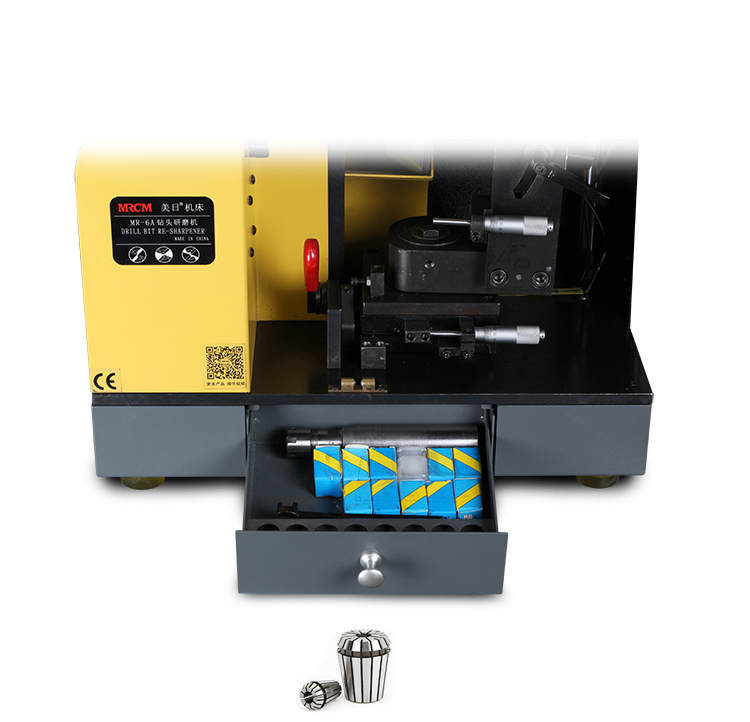

- 11 Collets: 1mm to 6mm
- Collet Chuck
- Optional Equipment
- SD Grinding Wheel (for Carbide)
Certification
Compliance
CE Certified
