Technical Specifications
Overview
Universal Battery Charging Solution

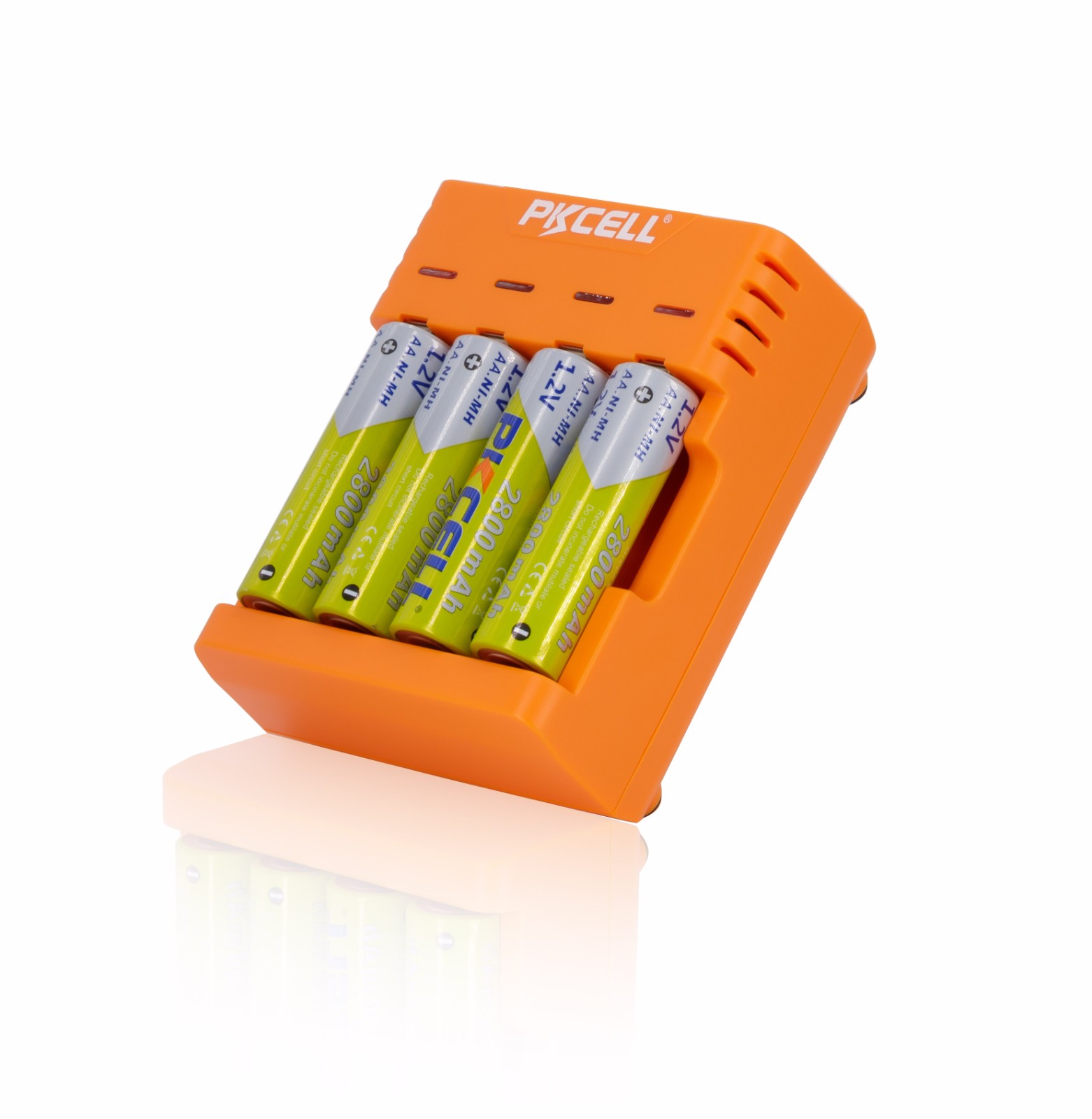

This universal battery charger provides a versatile and compact solution for powering AA and AAA Ni-MH and Ni-CD rechargeable batteries. Featuring four independent charging slots and a convenient Micro USB input, it allows for flexible charging from various power sources. The unit is engineered with an ABS shell for durability and multiple heat dissipation vents to ensure safe, efficient performance during operation.
Technical Specifications
Input Power
5 V
Voltage
1 A
Current
Output Specifications
1.53 V
Voltage
0.4 A
Current per slot
- Charging Slots
- 4 slots
- Charging Model
- Constant Current Pulse
Physical Attributes
- Dimensions
- 86mm x 71mm x 36mm
- Weight
- 66.6 g
- Shell Material
- ABS (2.0mm thickness)
Compatibility
- Compatible Battery Types
- Ni-MHNi-CD
- Compatible Battery Sizes
- AAAAA
Features
Charging Indicators
| Status | LED Color |
|---|---|
| Charging | Red |
| Power on / Fully Charged | Green |
Certifications
CE
Package Contents
Included in Box
- 1x Charger
- 1x Micro USB cable
- 1x User Instruction Manual
