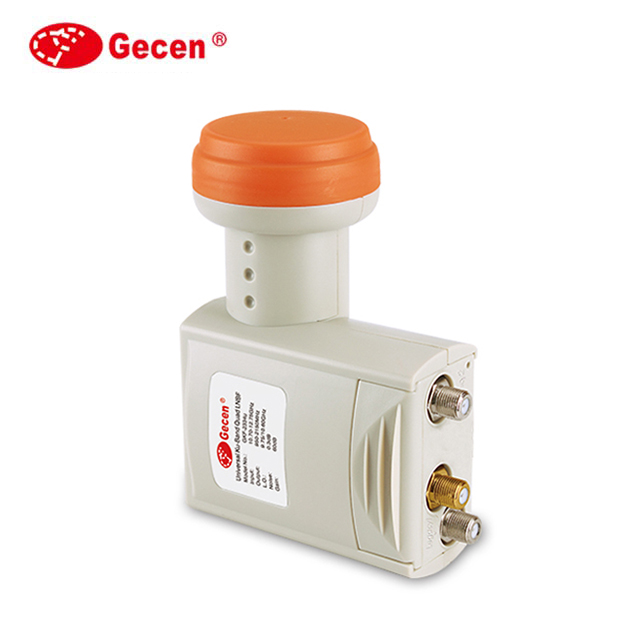

Unicable SCR LNB with Legacy Ports
This Unicable SCR LNB is designed for satellite TV reception. It features both Unicable/SCR and Legacy outputs, allowing multiple receivers to connect using a single cable.
Technical Specifications
Product Overview
High-Performance Satellite Reception
This advanced LNB delivers excellent performance with a low noise figure and high gain, ensuring reliable signal reception across the full Ku-Band range. Featuring a versatile design, it includes one SCR (Single Cable Router) port and two legacy ports, which significantly simplifies the installation process. It is an ideal solution for both analog and digital satellite systems, providing flexibility for connecting multiple receivers efficiently.
Technical Specifications
- Low Band Input Frequency
- 10.70 - 11.70 GHz
- High Band Input Frequency
- 11.70 - 12.75 GHz
- Low Band Output Frequency
- 950 - 1950 MHz
- High Band Output Frequency
- 1100 - 2150 MHz
- Noise Figure (Typ.)
- 0.3 dB
- Image Rejection (Min.)
- 40 dB
Performance Metrics
L.O. Phase Noise
-75 dBc/Hz
1KHz
-80 dBc/Hz
10KHz
-90 dBc/Hz
100KHz
Connectivity
Key Features
- Supports digital and analog reception
- Single cable routing capability
- Weather-resistant construction
- Full Ku-Band coverage
- Port Configuration
- 1x SCR Port2x Legacy Ports
