Ultrapure Water System for AdBlue Production
Commercial RO water purification system treats raw water to ultrapure water for AdBlue diesel exhaust fluid (DEF) production. Numbers of ultra pure water systems have been supplied to AdBlue licensed manufacturers.
Technical Specifications
System Overview
Industrial Ultrapure Water Solutions for DEF Production

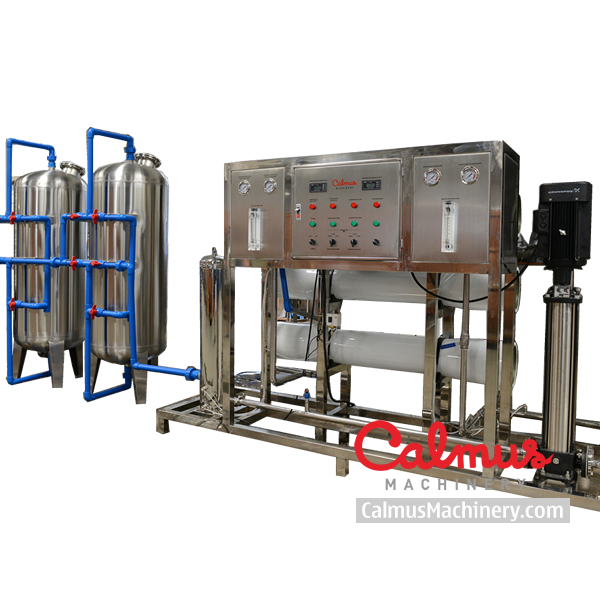

This professional-grade industrial reverse osmosis system is engineered specifically for the stringent water quality requirements of AdBlue and Diesel Exhaust Fluid (DEF) manufacturing. With a high-capacity output and advanced filtration technology, the system ensures consistent deionization and impurity removal. Built for durability with stainless steel construction, it offers both automatic and manual operation modes to optimize production efficiency and maintenance.
System Highlights
- Stainless steel construction
- LG PLC controlled automation
- Automatic running and manual maintenance modes
- World-class component integration
- Customizable to specific raw water quality
Performance Metrics
Key Performance Indicators
3,000 L/H
Purification Capacity
85 %
Overall Recovery Rate
98 %
Normal Salt Rejection
Operating Conditions
Operational Parameters
| Parameter | Value |
|---|---|
| Operating Pressure | 225 psi (1.5 Mpa) |
| Max Water Pressure | 261 psi (1.8 Mpa) |
| Max Feed Water Temp | 35 ℃ |
| Feed pH Range | 6.5 - 7.5 |
| Max Feed SDI | 5 |
Technical Specifications
- Power Requirements
- 3 phases, customized configuration, 7KW total power
- System Capabilities
- Reverse OsmosisDeionizationIndustrial ScalePLC Automated
