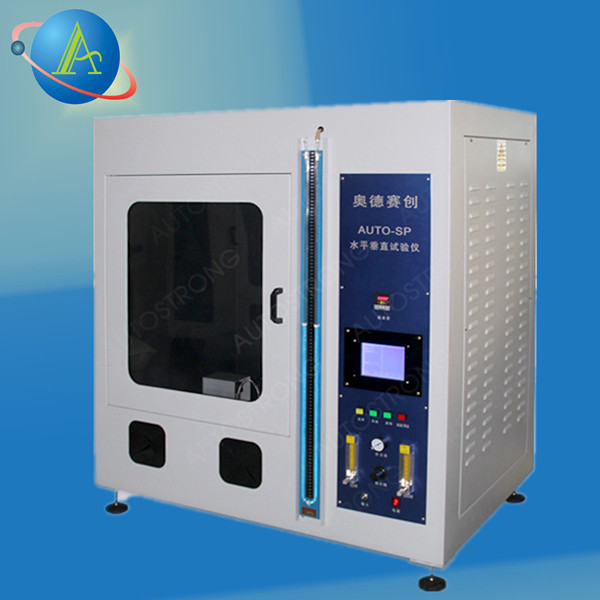

UL94 Horizontal and Vertical Flammability Tester
The UL94 Horizontal and Vertical Flammability Tester assesses plastic material flammability. It determines burning rate, afterflame time, and afterglow time when exposed to a controlled flame.
Technical Specifications
Overview
Precision Flammability Testing
The UL94 Horizontal and Vertical Flammability Tester provides an essential solution for evaluating the burning characteristics of plastic materials. By simulating small open flame exposure, it accurately measures burning rates, afterflame times, and dripping behavior to ensure compliance with international safety standards. Designed for quality control and research, this instrument is critical for material selection in electronics, automotive, and construction industries.
Capabilities
Key Performance Metrics
- Burning rate
- Afterflame time
- Afterglow time
- Dripping behavior
- Flame spread rate
- Testing Modes
- Horizontal Burning TestVertical Burning Test
Technical Specifications
Environmental Controls
Controlled Combustion ChamberPrecise Gas Flow RegulationDigital Timing MechanismDigital Temperature Display

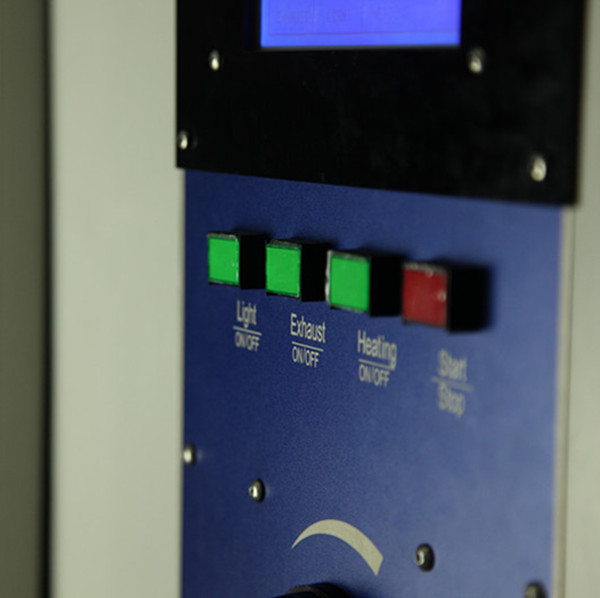

Operational Interface
| Component | Function |
|---|---|
| Lighting | ON/OFF Control |
| Exhaust System | ON/OFF Control |
| Heating | ON/OFF Control |
| Test Cycle | Start/Stop Automation |
Compliance
- Standards Compliance
- UL94
