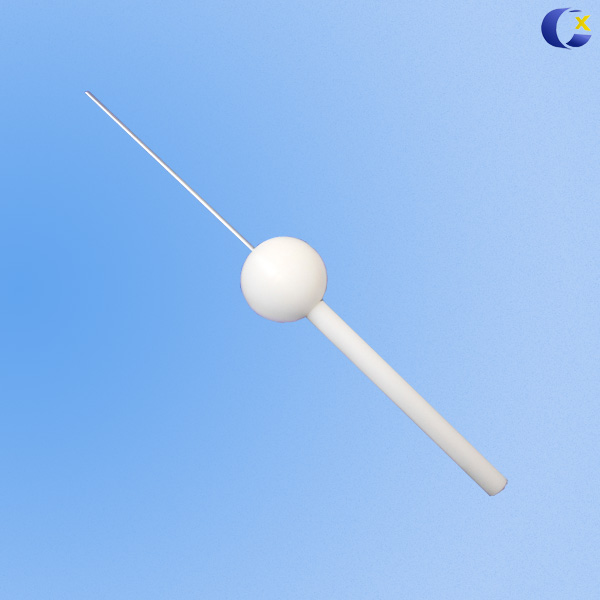

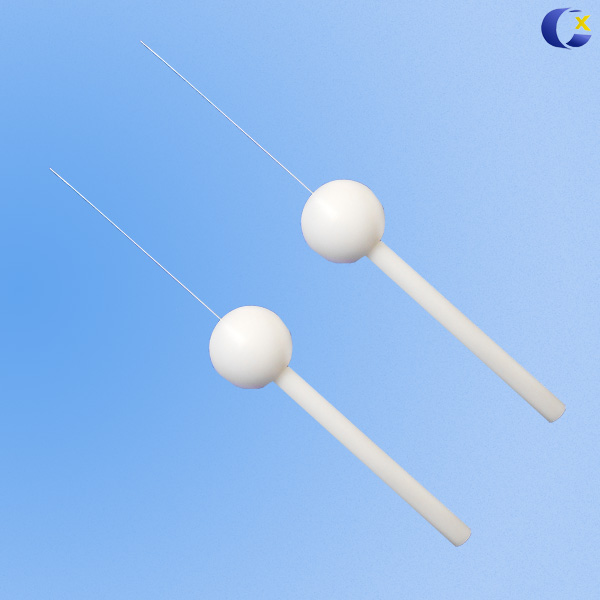

IPX3 Spraying Water Ingress Test Probe
This IPX3 test probe C is designed to verify protection against spraying water. The probe is used to determine if the enclosure provides adequate protection against water ingress.
Technical Specifications
Product Overview
Precision Testing Capability
The IPX3 Spraying Water Ingress Test Probe (Probe C) is a precision instrument engineered to verify the protection of electrical enclosures against the ingress of water. Designed in strict accordance with IEC61032 and IEC60529 standards, this probe simulates human access to hazardous parts and evaluates the effectiveness of enclosures against spraying water at a 60-degree angle. Built with durable materials, it ensures reliable and repeatable testing results for quality control and compliance verification.
Technical Specifications
- Rod Length
- 100 mm
- Rod Diameter
- 2.5 mm
- Handle Length
- 100 mm
- Handle Diameter
- 10 mm
- Sphere Diameter
- 35 mm
Compliance & Standards
Test Applications
- IPX3 Water Ingress Testing
- Protection against access to hazardous parts
- Protection against access with a tool
- Standards Compliance
- IEC61032IEC60529IEC60065
Design Features
Construction Details
| Component | Material / Note |
|---|---|
| Rigid Test Rod | Metal |
| Handle | Insulating material |
| Stop Face | Insulating material |
| Rod Edges | Free from burrs |
