Technical Specifications
Overview
Professional UHF Wireless System

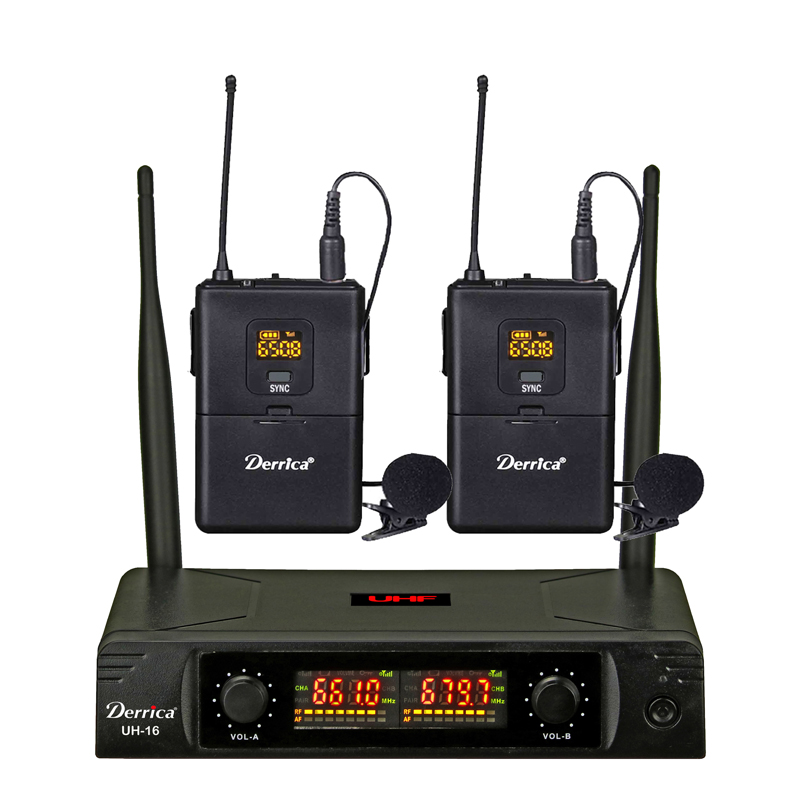

This digital diversity wireless microphone system offers reliable audio transmission across 2x30 selectable UHF channels. Designed for professional applications such as presentations, performances, and recording, it ensures clear sound quality with advanced interference avoidance via ID code locking. The system includes a receiver unit with independent volume controls and dual antennas for enhanced signal reception.
Technical Specifications
- Model Number
- UH-16-HH
- Frequency Range
- 480-960 MHz
- Channels
- 60 channels
- Operating Distance
- 60 m
- Interference Prevention
- Digital DiversityID Code LockingAuto Synchronizing
Connectivity & Power

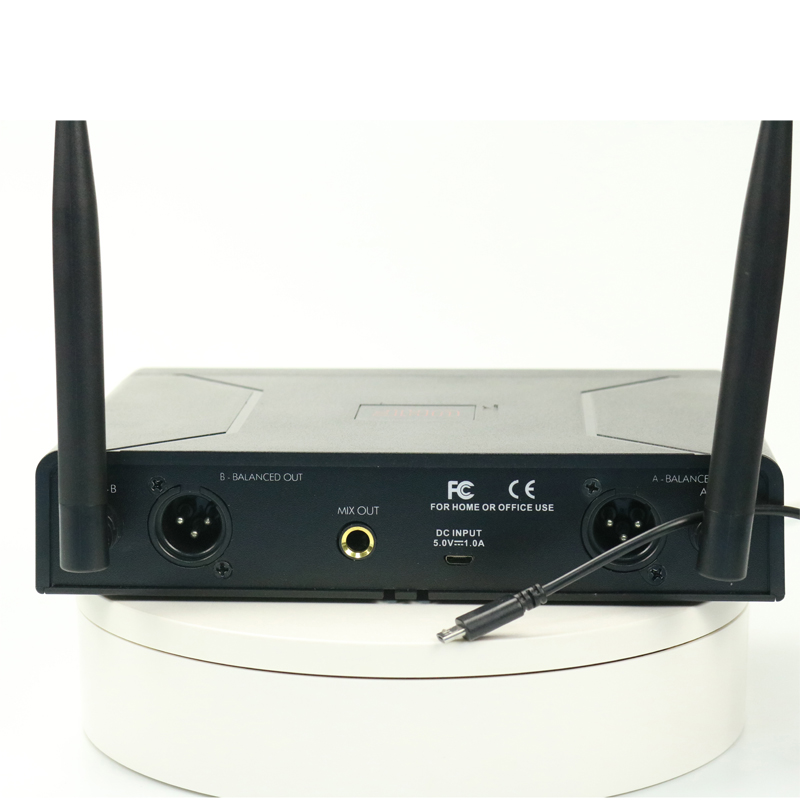

Audio Outputs
- 2x Balanced XLR (Channel A & B)
- 1x 3.5mm Mix Output
Power Input
5 V
Voltage
1 A
Current
Certifications
FCCE
