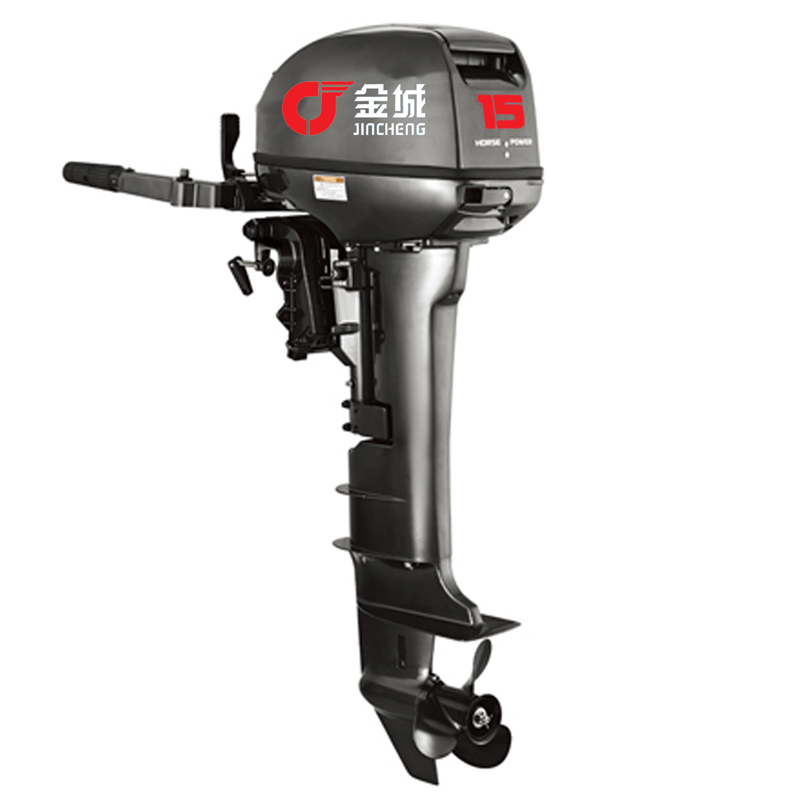

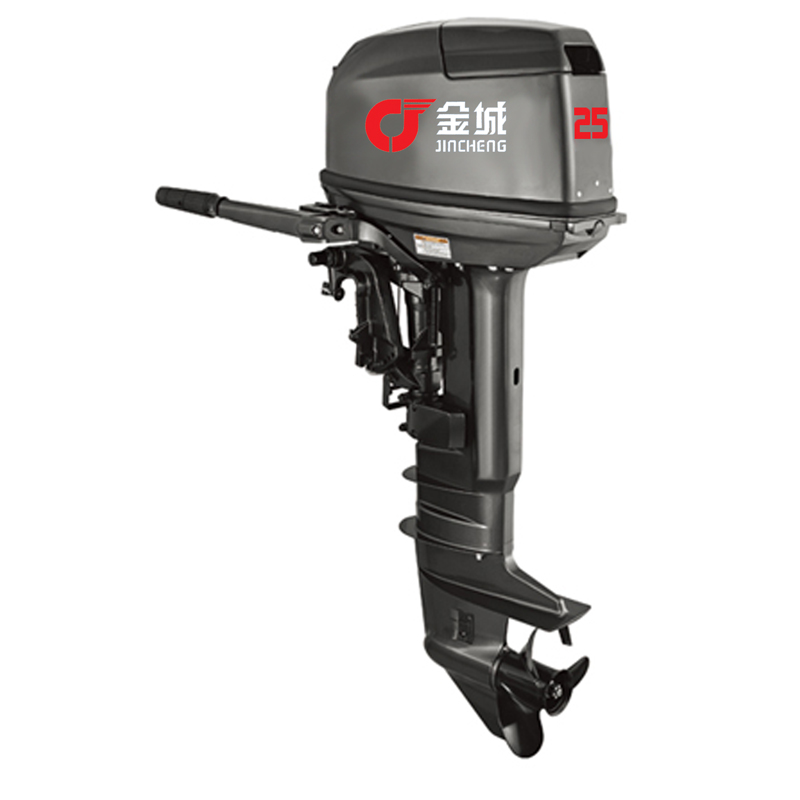

Two-Stroke Outboard Motor
This two-stroke outboard motor is a compact and powerful marine propulsion system designed for small to medium-sized boats. It features a robust engine with a displacement optimized for efficiency and performance.
Technical Specifications
Product Overview
High-Performance Two-Stroke Marine Propulsion
This two-stroke outboard motor is engineered for reliable and efficient propulsion on small to medium-sized watercraft. Featuring a robust dual-cylinder design and a simplified internal structure, it offers ease of maintenance alongside consistent performance. The motor is equipped with integrated control systems for precise handling, making it a dependable choice for diverse marine environments.
- Available Variants
- 9HP15HP20HP25HP30HP40HP60HP
Performance Metrics
Performance Highlights
11.2 kW
Max Prop Shaft Output
246 cc
Displacement
2.08
Gear Ratio
Engine Specifications
Technical Specifications
| Specification | Value |
|---|---|
| Motor Type | 2-Cylinder, 2-Stroke |
| Max Speed Range | 4500-5500 rpm |
| Idling Speed | 750 ± 50 rpm |
| Bore x Stroke | 56 x 50 mm |
Operations and Logistics
Physical Characteristics
- Dry Weight: 37.5 kg
- Engine Transom Height: 567 mm (20.5 in)
- Fuel Tank Capacity: 24 Liters
- Starting System: Manual
- Steering System: Manual Tiller
- Trim & Tilt: Manual
Electrical and Compatibility
Electrical and Fuel
- Alternator Output: 12V/6A (with Rectifier/Regulator)
- Fuel Induction: 1 Carburetor
