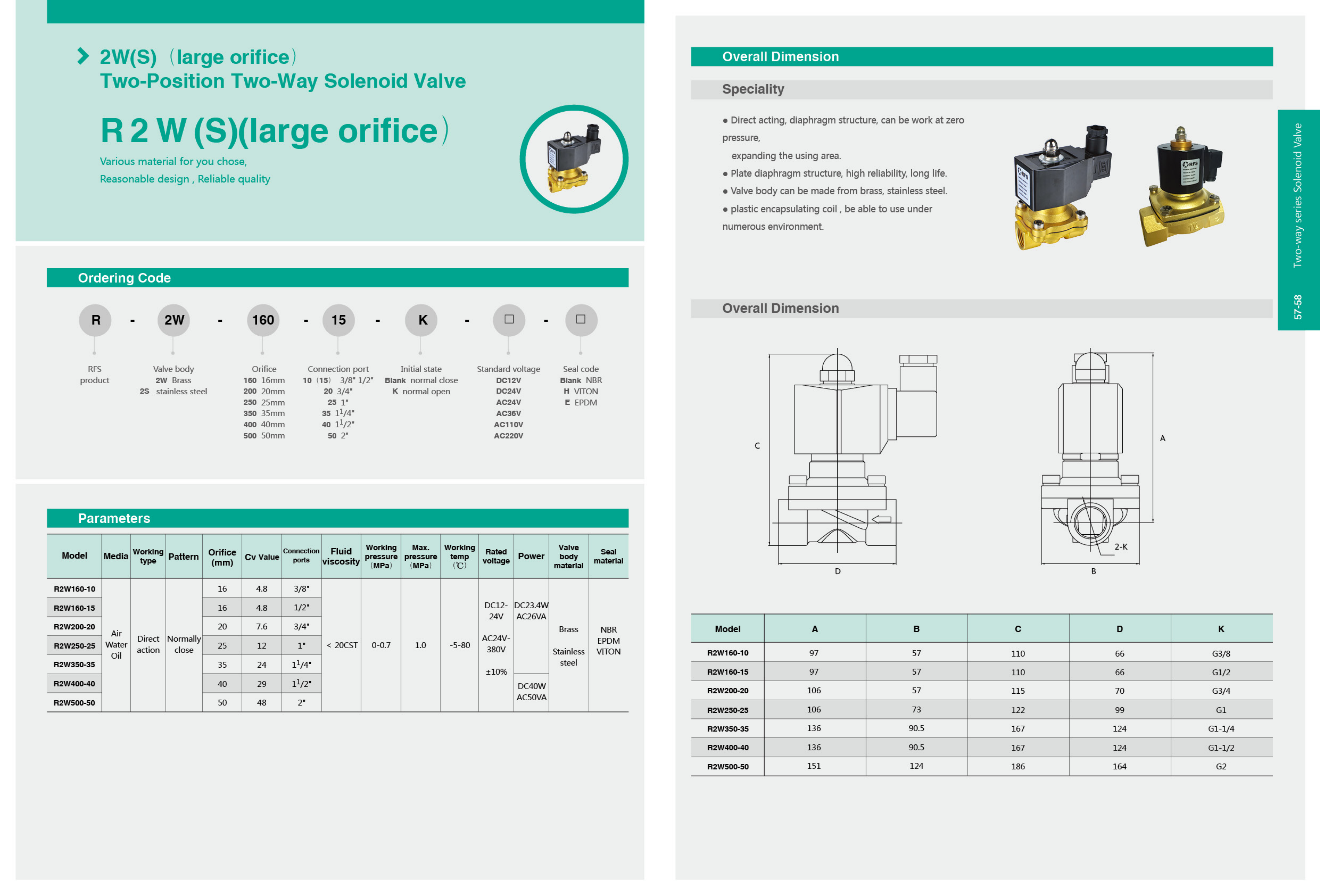

Two-Position Two-Way Solenoid Valve
This two-position, two-way solenoid valve is designed with a large orifice and reliable quality. It incorporates a plate diaphragm structure for high reliability and long life.
Technical Specifications
Product Overview
High-Performance Two-Way Solenoid Valve
The R2W series is a direct-acting, two-position two-way solenoid valve designed to operate at zero pressure, making it ideal for a wide range of industrial pipe applications. Featuring a robust plate diaphragm structure, these valves offer high reliability and an extended service life for both brass and stainless steel body configurations. With options for air, water, and oil compatibility, these valves provide versatile flow control solutions for demanding environments.
Technical Specifications
- Supported Media
- AirWaterOilGas
- Working Pressure Range
- 0 - 0.7 MPa
- Maximum Pressure
- 1 MPa
- Operating Temperature
- -5 to 80°C
- Fluid Viscosity
- < 20 CST
Construction & Materials
Valve Body Materials
BrassStainless Steel
Seal Materials
NBREPDMVITON
- Coil Design
- Plastic encapsulating coil
Performance Metrics
Orifice Range
- 1.2mm
- 2.0mm
- 2.5mm
- 4.0mm
- 16mm
- 20mm
- 25mm
- 35mm
- 40mm
- 50mm
Connection Ports
- 1/8"
- 1/4"
- 3/8"
- 1/2"
- 3/4"
- 1"
- 1-1/4"
- 1-1/2"
- 2"
- Supported Voltages
- DC12VDC24VAC24VAC36VAC110VAC220VAC380V
