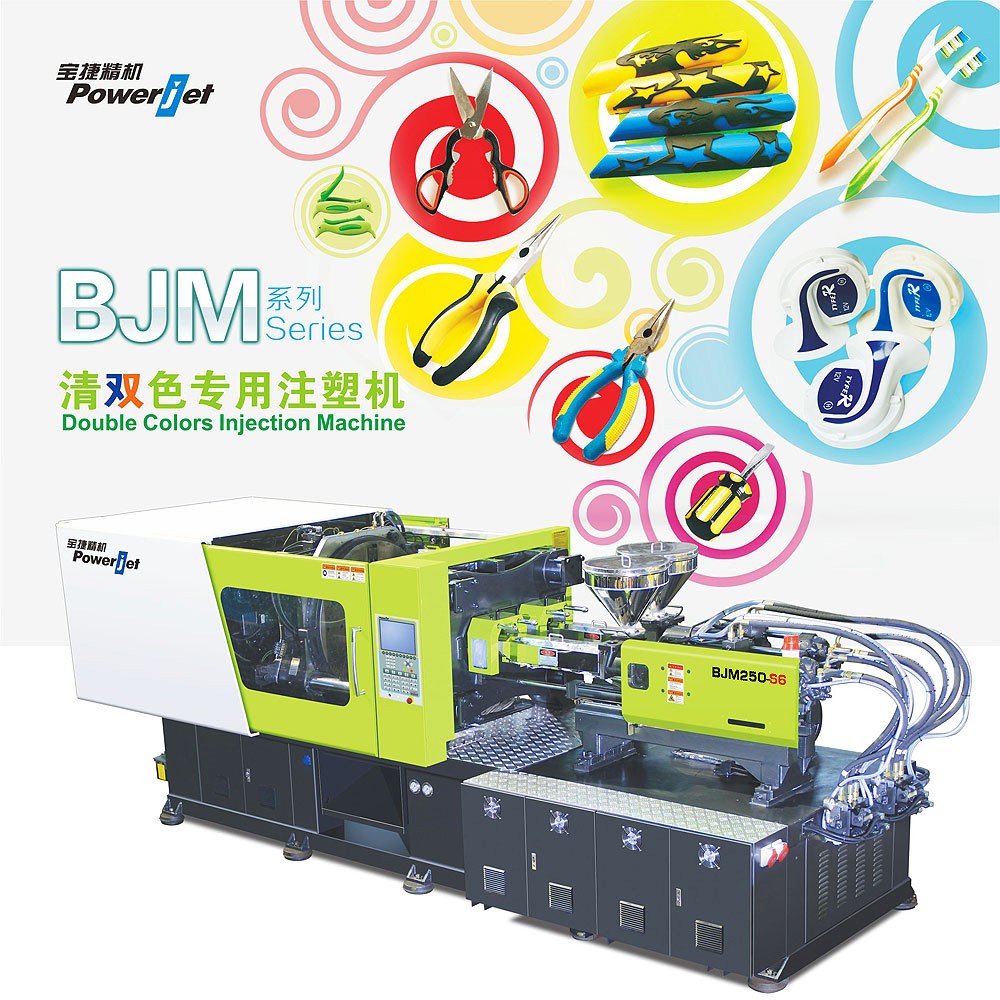

Two-Color Plastic Injection Molding Machine
This two-color injection molding machine specializes in manufacturing double-color plastic products. Its advanced driving system reduces manufacturing costs while ensuring excellent product performance and ease of operation.
Technical Specifications
Product Overview
Advanced Two-Color Injection Solutions
This specialized injection molding machine is engineered for the efficient manufacturing of double-color plastic products. It features an advanced driving system that reduces manufacturing costs while remaining easy to operate. By utilizing a rotary mold design and independent controls for shot platforms, it achieves high precision and energy savings for complex multi-material applications.
Key Performance Metrics
Performance Highlights
Technical Features
Core Features
- Rotary Mold Design with 180° movable platen
- Mechanical Positioning for high stability
- External Hydraulic and Water Cooling System
- Servo Hydraulic System for energy efficiency

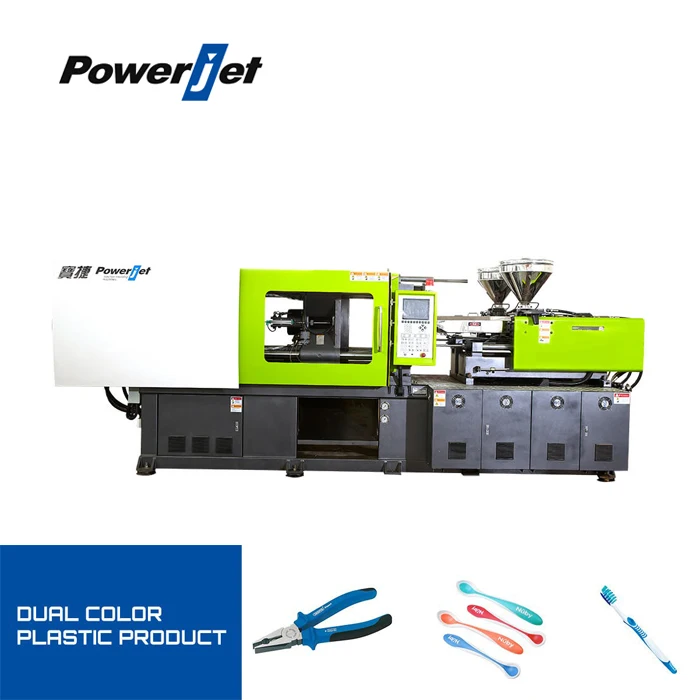

- Two independent controls for simultaneous injection
- Maintenance Design
- Yes

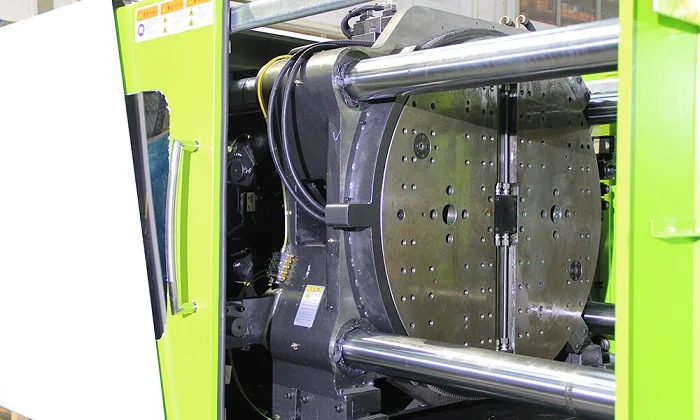

Clamping Unit
- Platen Size
- 1252 x 900 mm
- Clamping Force Range
- 160 ~ 400 Ton

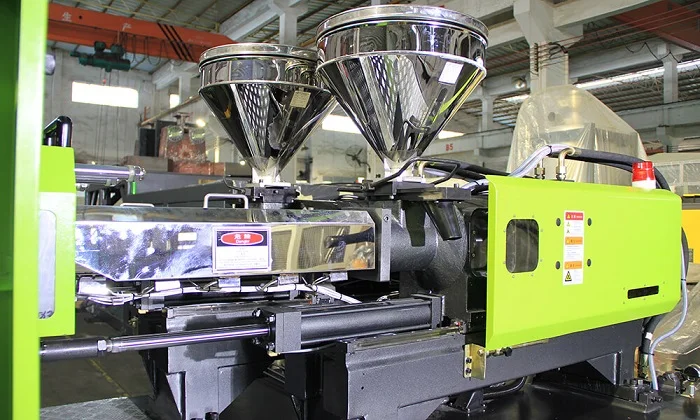

Injection Unit
- Shot Weight (PS)
- 106 ~ 617 g
Operational Capabilities
Dual Material Injection
The machine supports two distinct operational modes: sequential injection where the rotary platen turns 180° between shots, or simultaneous injection where both materials are injected at the same time to form the final product shape.
Applications
- Typical Applications
- Two-Color Injection ProductsToothbrushesMulti-colored HandlesAutomotive ComponentsConsumer GoodsMedical Devices
