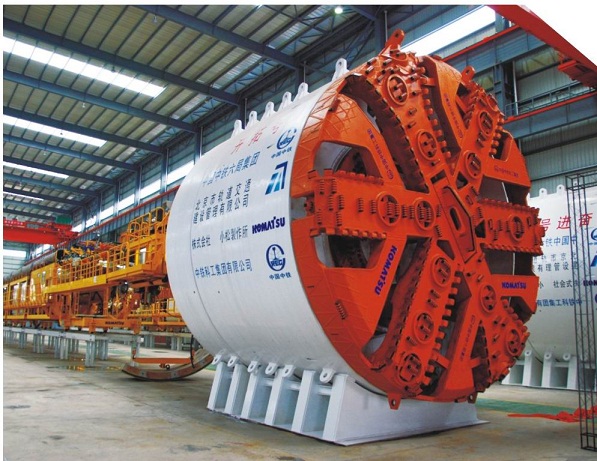

Tunnel Excavation Machine
This tunnel boring machine excavates tunnels through rock and soil. It facilitates tunnel lining and guided measurement correction during the boring process.
Technical Specifications
Overview
Advanced Tunnel Excavation Technology
This tunnel boring machine is engineered for high-efficiency excavation across diverse soil and rock strata. Designed to facilitate the construction of tunnels for subway systems, railway lines, and critical underground infrastructure, it offers a robust alternative to traditional drilling and blasting methods. The unit features advanced control systems and integrated segment erection technology to ensure consistent performance and structural stability.
Technical Capabilities
Key Performance Metrics
17.6 meters
Maximum Tunnel Diameter
1 meters
Minimum Tunnel Diameter
- Geological Adaptability
- Hard RockSandSoil Strata
Operational Features
Primary System Components
- Rotating cutter head
- Advanced control systems
- Hydraulic power units
- Segment erection systems
- Muck removal system
- Ground support shielding
Target Applications
Subway SystemsRailway LinesSewersRoadways
