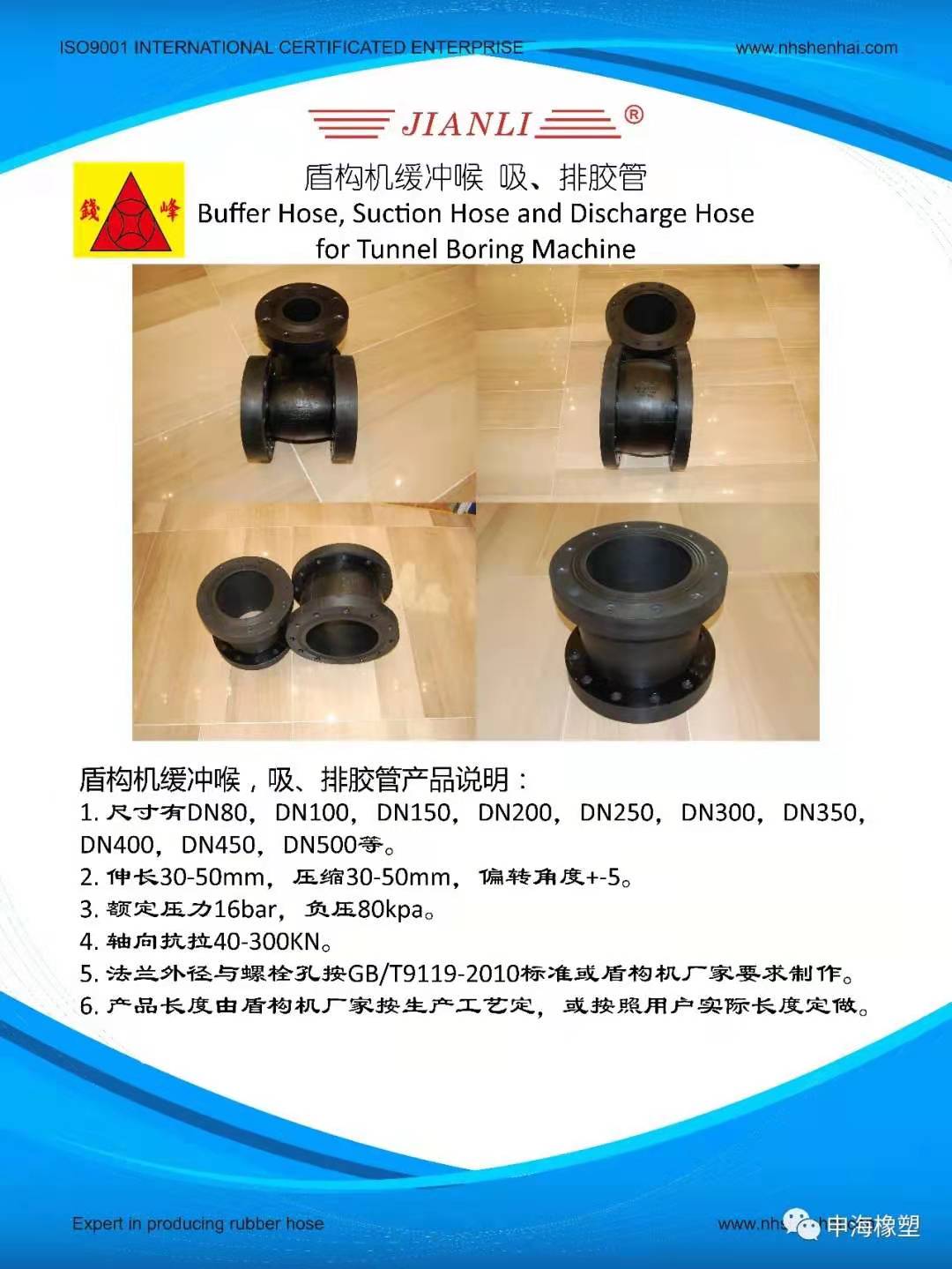

Tunnel Boring Machine Hose
This hose is designed for suction and discharge applications in tunnel boring machines. It provides reliable fluid transfer in demanding construction environments.
Technical Specifications
Product Overview
High-Performance Tunneling Hoses
These specialized buffer, suction, and discharge hoses are engineered specifically for demanding tunnel boring machine (TBM) and trench cutter operations. Built for durability in harsh construction environments, they provide reliable fluid transfer and structural resilience. The hoses are available in a wide range of standard sizes to accommodate diverse project requirements and site-specific configurations.
Technical Specifications
Rated Pressure
16 bar
Rated Pressure
80 kPa
Negative Pressure
Mechanical Capabilities
| Property | Range |
|---|---|
| Elongation | 30-50 mm |
| Compression | 30-50 mm |
| Deflection Angle | ±5 degrees |
| Axial Tensile Strength | 40-300 KN |
- Available Sizes (DN)
- DN80DN100DN150DN200DN250DN300DN350DN400DN450DN500
Compliance and Standards
Certifications
ISO 9001
- Flange Standards
- GB/T9119-2010 or customer-specified requirements
