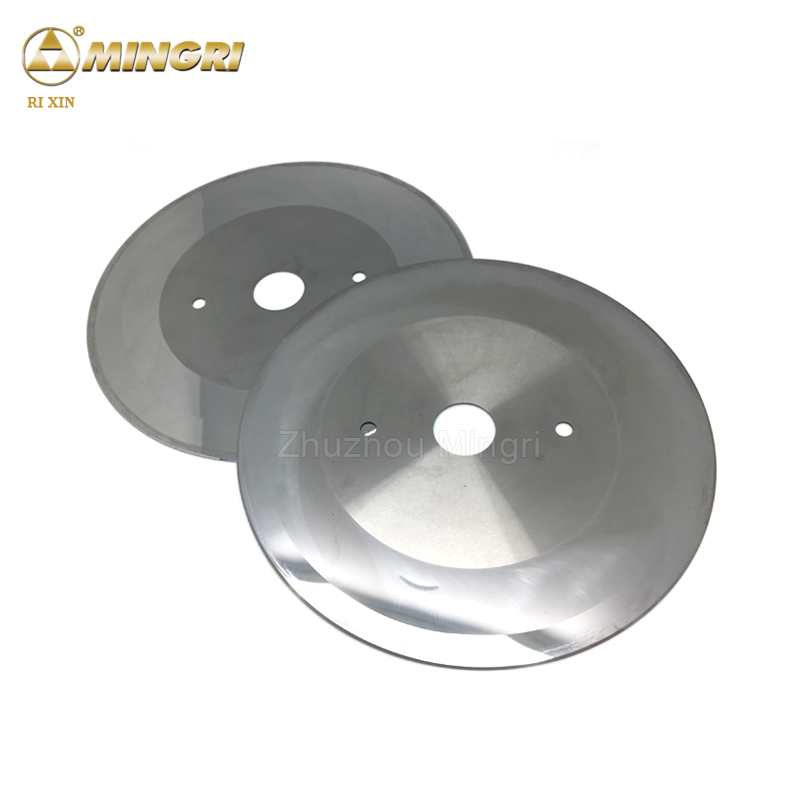

Tungsten Carbide Industrial Cutting Blade
High-precision tungsten carbide blades designed for industrial cutting applications. These blades offer exceptional wear resistance, extended lifespan, and superior cutting performance.
Technical Specifications
Product Overview
Industrial Precision Blades
Engineered for high-performance industrial cutting, these tungsten carbide blades are designed for superior wear resistance and durability. The blades provide high cutting precision, excellent flatness, and an extended service life in demanding environments. They are specifically optimized for applications ranging from slitting corrugated boards to processing chemical fibers and plastics.
Material Composition
- Composition
- Tungsten Carbide (WC)Cobalt Binder
Performance Specifications
Tungsten Carbide Grades
| Grade | ISO Grade | Hardness (HRA) | Density (g/cm³) | TRS Mpa (min) |
|---|---|---|---|---|
| MR010 | K05 | 92.3 | 14.6 | 2,500 |
| MR020 | K20-K30 | 91.8 | 14.4 | 3,000 |
| MR030 | K40 | 90.5 | 14 | 3,200 |
| MR040 | K40 | 89.8 | 13.9 | 3,200 |
Applications
Suitable Applications
- Slitting corrugated boards
- Woodworking
- Chemical fiber processing
- Plastic cutting
- Leather cutting
- Battery pole piece manufacturing
- Non-ferrous metal machining
