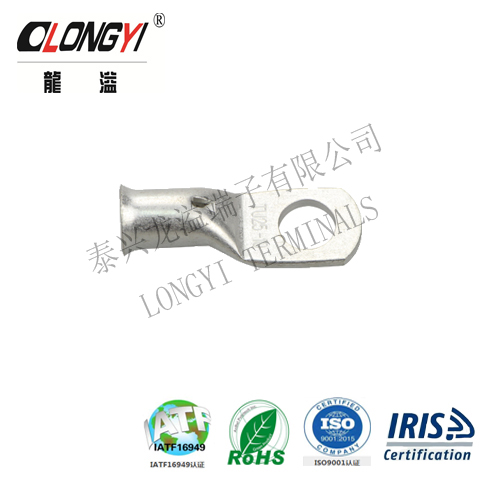

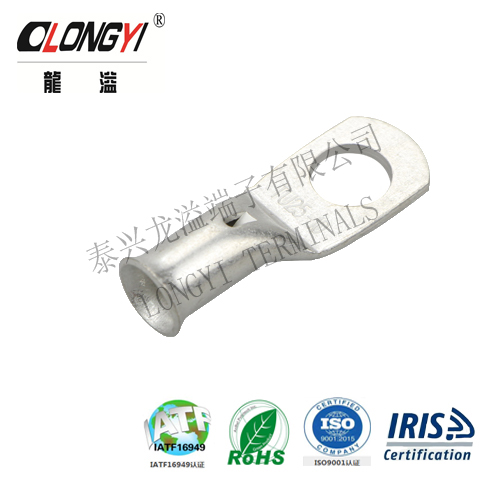

TU Copper Cable Lug
TU cable lugs are designed for connecting copper conductors in power cables to electronic equipment. They are made of 99.99% pure copper tube T2 and coated with tin, with a working temperature range of -55oC to 150oC.
Technical Specifications
Product Overview
High-Conductivity TU Copper Cable Lugs
TU bell-mouth cable lugs are engineered for the reliable connection of copper conductors in power cable systems and electronic equipment. Manufactured from 99.99% pure T2 copper tube and finished with a tin coating, these lugs ensure superior electrical performance and corrosion resistance. Designed to handle extreme environments, they operate reliably within a temperature range of -55°C to 150°C.
Technical Specifications
Operating Temperature
-55 °C
Min Temperature
150 °C
Max Temperature
- Material
- 99.99% pure T2 copper tube with tin coating
- Conductor Cross-section
- 10 - 300 mm²
Compliance
- Industry Certifications
- CEULJISDINAWG
Dimensions
Standard Dimensional Data
| Item No | φE (mm) | L (mm) |
|---|---|---|
| TU10-5 | 5 | 27 |
| TU16-5 | 5 | 29.5 |
| TU25-5 | 5 | 40 |
| TU35-5 | 5 | 41 |
| TU50-5 | 5 | 46 |
| TU70-5 | 5 | 48 |
| TU95-8 | 8 | 58 |
| TU120-8 | 8 | 73 |
| TU300-20 | 21 | 97 |
