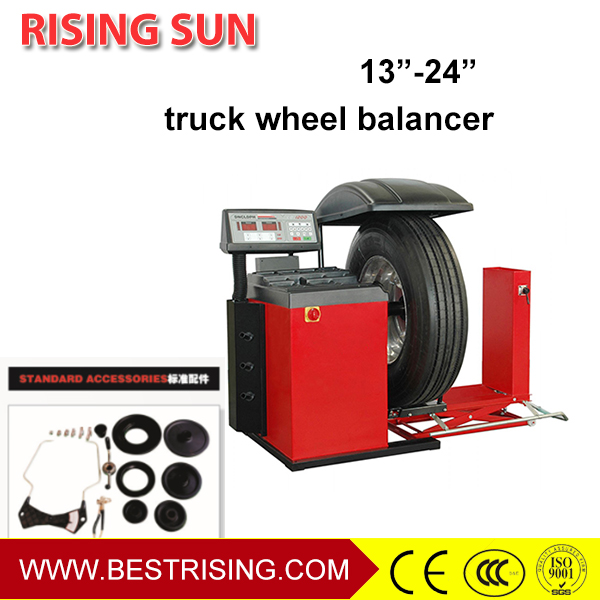

Truck Wheel Balancer for Garage Equipment
This truck wheel balancer is designed for balancing wheels ranging from 13 to 24 inches. The equipment is suitable for garage environments and ensures accurate wheel balancing for trucks.
Technical Specifications
Product Overview

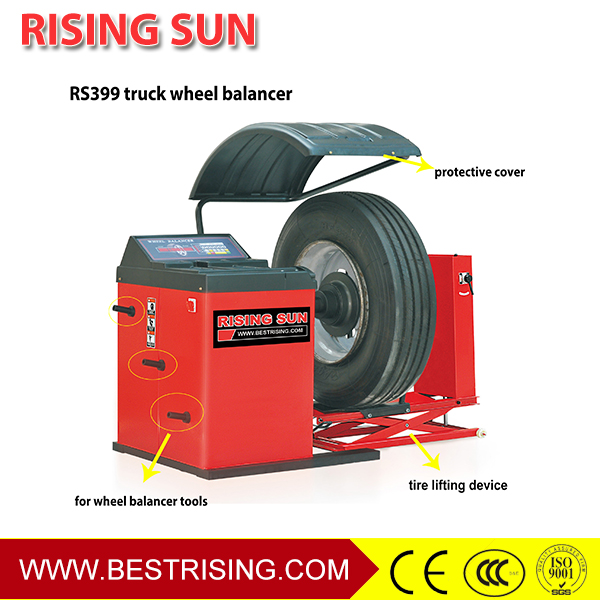

Professional Truck Wheel Balancer
This high-precision truck wheel balancer is designed for automotive repair shops and tire service stations, offering reliable dynamic, static, and aluminum alloy rim balancing. It features advanced pressure sensor technology for accurate readings and includes convenient operational features such as a foot brake and optional protective cover. Certified for safety and quality, this machine provides the necessary performance for demanding garage environments.

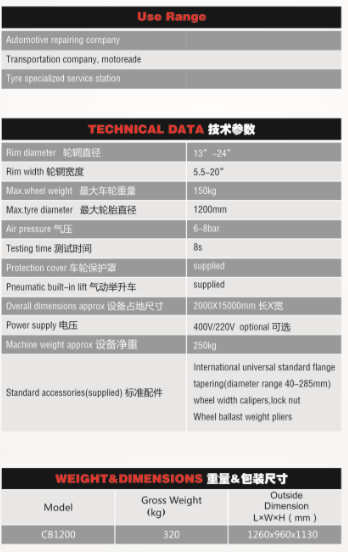

Technical Specifications
Performance Metrics
200 r/min
Rotation Speed
150 kg
Max Tire Weight
10 g
Balance Precision
Capacity Specifications
| Parameter | Value |
|---|---|
| Rim Diameter | 10"-26" |
| Max Tire Diameter | 1200mm |
| Tire Width | 1.5"-16" |
| Motor | 380V/550W |

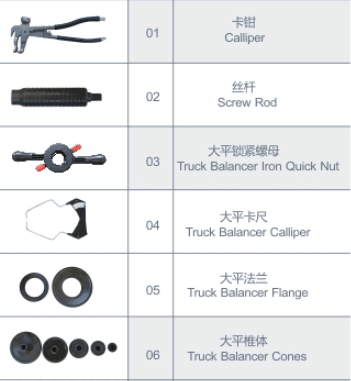

Features & Accessories
Key Features
- Automatic dynamic and static balancing
- Aluminum alloy rim balancing capability
- High-precision pressure sensor technology
- Integrated foot brake function
- Optional protective cover available
Certifications
CE CertifiedISO 9001
Logistics
Shipping & Packaging
| Item | Specification |
|---|---|
| Packing Dimensions | 1230 x 990 x 1140 mm |
| Gross Weight | 265 kg |
| Volume | 1.40 cbm |
| 20ft Container Capacity | 18 pcs |
| 40ft Container Capacity | 40 pcs |
