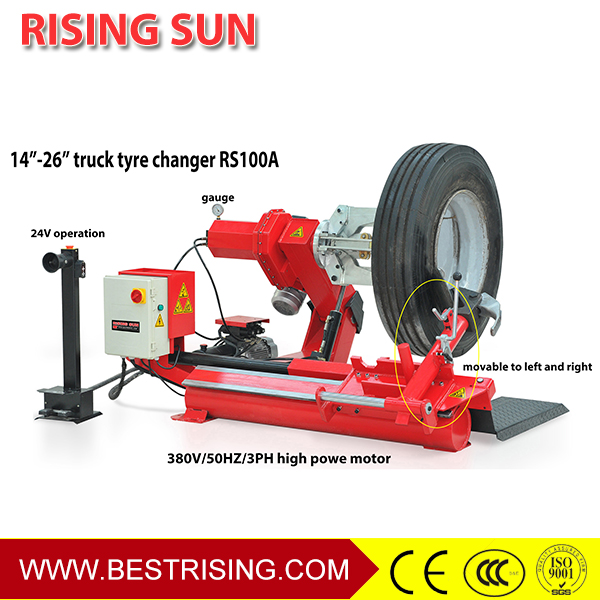

Truck Tire Changer Machine
This truck tire changer handles tires with rim diameters from 14 to 26 inches. It is equipped with adjustable components for versatility across different tire sizes and types.
Technical Specifications
Product Overview
Professional Truck Tire Changer
This robust truck tire changer is engineered for heavy-duty garage environments, offering reliable operation for rims ranging from 14 to 26 inches. It features a sophisticated hydraulic system for precise control over the tool bracket, lifting arm, and gripper, ensuring consistent clamping force. With a focus on safety and durability, the machine utilizes a 24V low-pressure control system and an integrally welded guide rail for smooth, deformation-free performance.
Technical Specifications
- Rim Diameter Capacity
- 14"-26"
- Max Tire Weight
- 500 kg
- Max Wheel Diameter
- 1600 mm
- Max Wheel Width
- 780 mm
- Working Pressure
- 0-130 bar
- Supported Voltage
- 380V220V110V
Performance Metrics
Motor Specifications
1.5 kW
Gear Box Motor
1.5 kW
Hydraulic Motor
Logistics & Compliance
Certifications
CE Certified
Shipping & Handling
| Metric | Value |
|---|---|
| Packing Volume | 3.03 cbm |
| Total Weight | 620 kg |
| 20ft Container Load | 8 pcs |
| 40ft Container Load | 16 pcs |
