Technical Specifications
Product Overview
Integrated Electro-Hydraulic Control
This transmission valve body is engineered with an integrated solenoid valve to provide precise electro-hydraulic control for heavy-duty machinery. Its compact design facilitates simple maintenance while delivering excellent efficiency, ensuring reliable performance in demanding environments. The unit supports 6x3 gear shifting with boost pressure control, resulting in smoother transitions, enhanced operating comfort, and reduced operator fatigue.

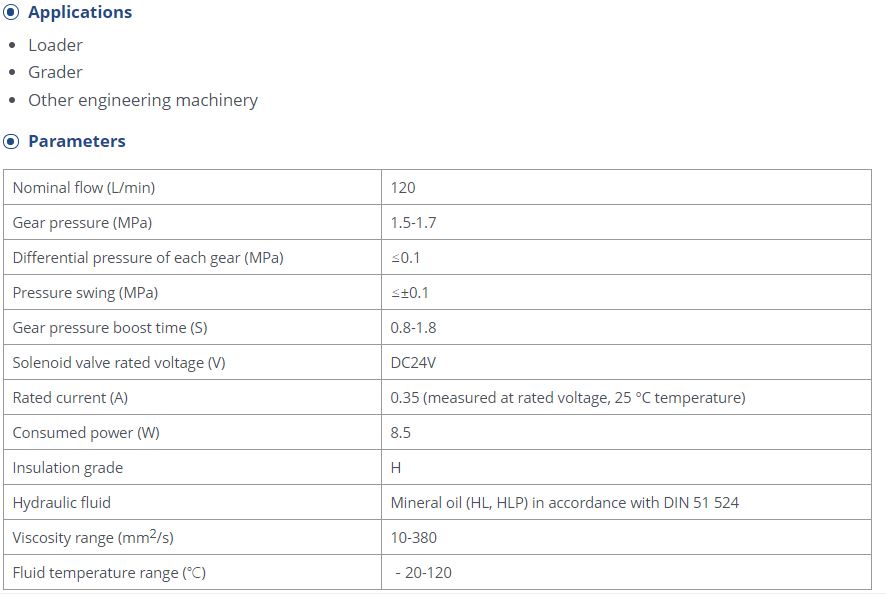

Technical Specifications
Performance Metrics
0.1 MPa
Differential Pressure
0.1 MPa
Pressure Swing
1.3 s
Pressure Boost Time
- Nominal Flow
- 120 L/min
- Gear Pressure Range
- 1.5-1.7
Electrical Specifications
Solenoid Configuration
| Parameter | Value |
|---|---|
| Rated Voltage | DC24V |
| Rated Current | 0.35 A |
| Power Consumption | 8.5 W |
| Insulation Grade | H |
Operating Environment
- Hydraulic Fluid Compatibility
- HLHLPDIN 51 524
- Viscosity Range
- 10-380 mm²/s
- Fluid Temperature Range
- -20 to 120 °C
Applications
Suitable Machinery
- Loader
- Grader
- Mining Machinery
- Engineering Machinery
