Titanium Alloy Plate
This titanium alloy plate is designed for high-performance applications requiring strength and light weight. It is suitable for use in motorcycles.
Technical Specifications
Product Overview

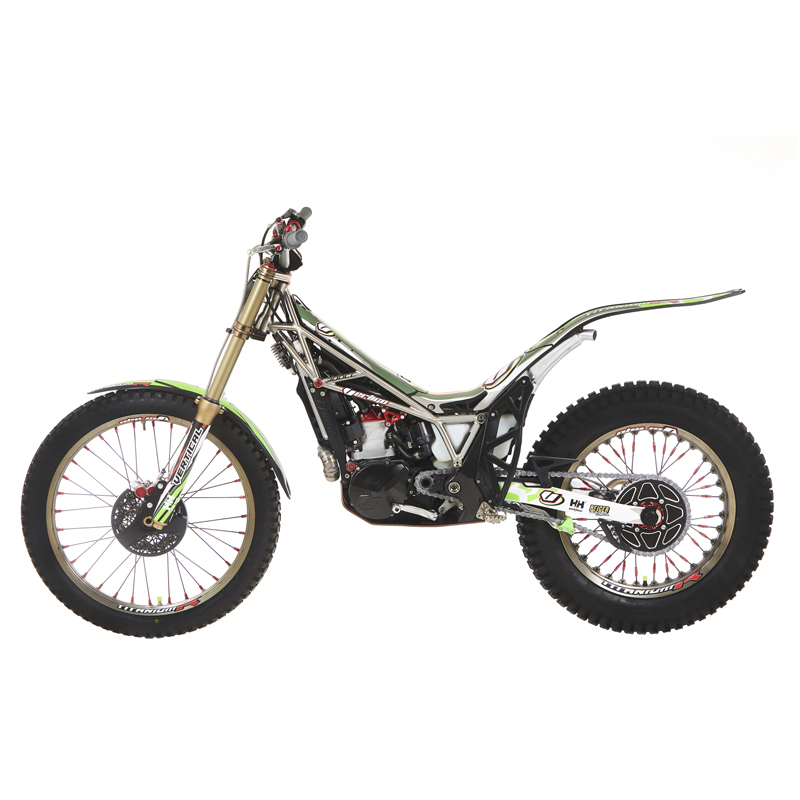

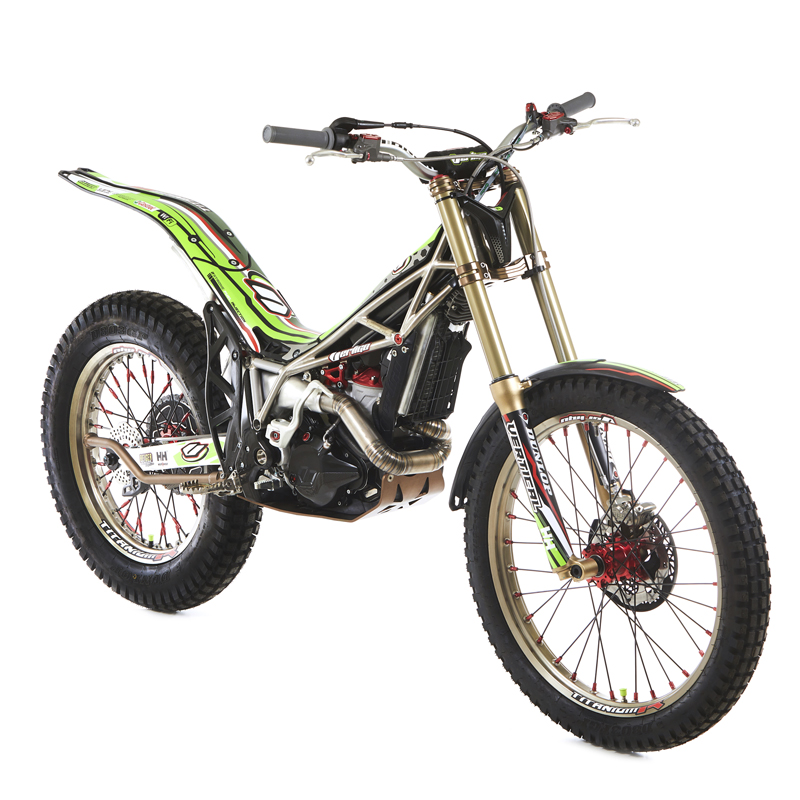

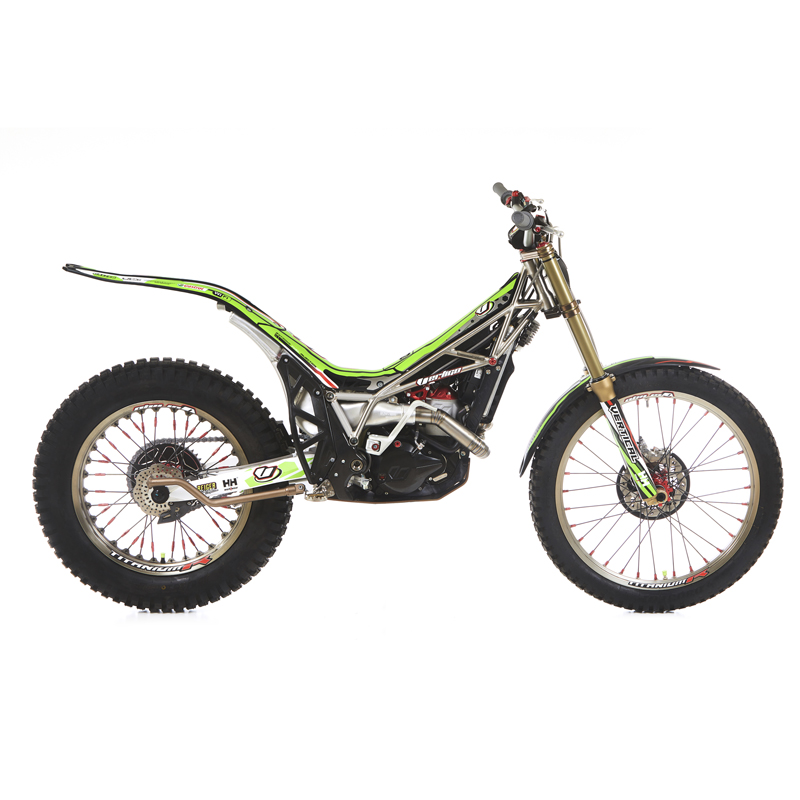

High-Performance Trial Motorcycle
This advanced trial motorcycle is engineered for professional riders requiring maximum precision and agility in challenging terrains. Featuring a lightweight frame construction and a highly responsive engine, it offers superior control and maneuverability. The integration of cutting-edge electronic fuel injection and premium suspension components ensures optimal performance during competitive riding.
Engine Specifications
Bore x Stroke Configurations
| Displacement | Dimensions |
|---|---|
| 125cc | 54x54.5mm |
| 200cc | 64x54.5mm |
| 247cc | 72.5x60mm |
| 280cc | 76x60mm |
| 300cc | 79x60mm |
- Engine Type
- 2-stroke EFI
- Displacements
- 125cc200cc247cc280cc300cc
Technical Details
- Transmission
- 6-speed gearbox, 4-speed climbing optimized
- Clutch System
- Multi-disc oil wet adjustable spring preload
Chassis and Suspension
- Frame Material
- 25CrMo4 steel + aluminium 6082 subframe
- Front Suspension Stroke
- 170 mm
- Rear Suspension
- Reiger 2-way monoshock with compression, rebound and spring preload adjustment
Electronic Systems
Integrated Sensors
- Atmospheric pressure sensor
- Air temperature sensor
- TPS (Throttle position sensor)
- Fuel System
- Electronic Fuel Injection (EFI)
