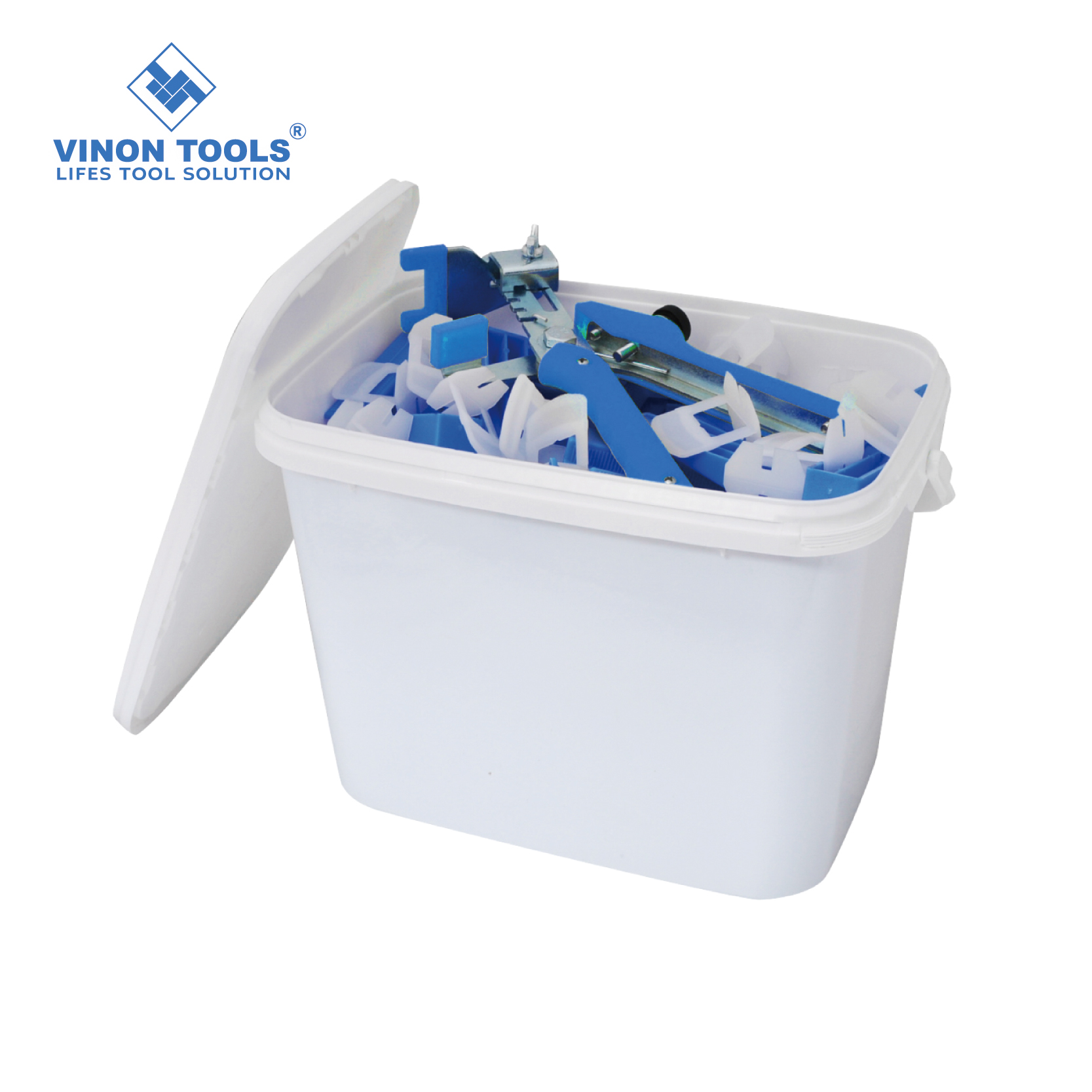

Tile Leveling System Kit with Wedges, Clips, and Pliers
This tile leveling system is designed for quick and easy installation, reducing fatigue and the need for grinding. It ensures levelness between tiles, preventing movement during mortar setting, and includes reusable wedges, clips, and pliers.
Technical Specifications
Product Overview
Professional Tile Leveling Solution
This comprehensive tile leveling kit is designed to ensure perfectly level surfaces while preventing tile movement during the mortar setting process. The system includes reusable wedges, precision-engineered clips, and specialized pliers to reduce installer fatigue and eliminate lippage. It provides a professional, high-quality finish for both wall and floor tiling projects.
Technical Specifications
Spacer Joint Sizes
- 0.5mm
- 1mm
- 1.5mm
- 2mm
- 2mm (higher)
- 3mm
- Material
- Plastic PP
- Wedge Dimensions
- 98 x 21 x 20 mm
- Product Size
- 40 x 35 x 31 mm
- Hollow Window Size
- 24 x 16 mm
Key Features
Key Advantages
Eliminates LippageReusable WedgesWall & Floor CompatibleQuick InstallationReduces Fatigue
Usage Instructions
Installation Steps
| Step | Action |
|---|---|
| 1 | Place spacer 100mm from both ends of the tile. |
| 2 | Fasten the wedges once tile and spacer are in place. |
| 3 | Clamp the pieces together with the leveling tool. |
| 4 | Remove wedges by kicking along the grout joint after adhesive dries. |
| 5 | Remove wedge from spacer for re-use. |
