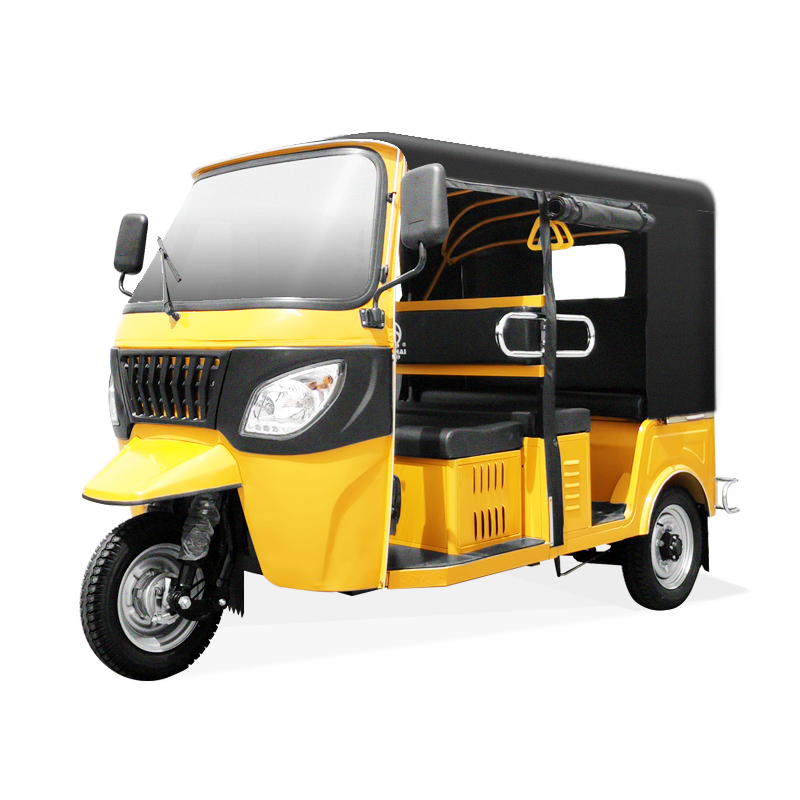

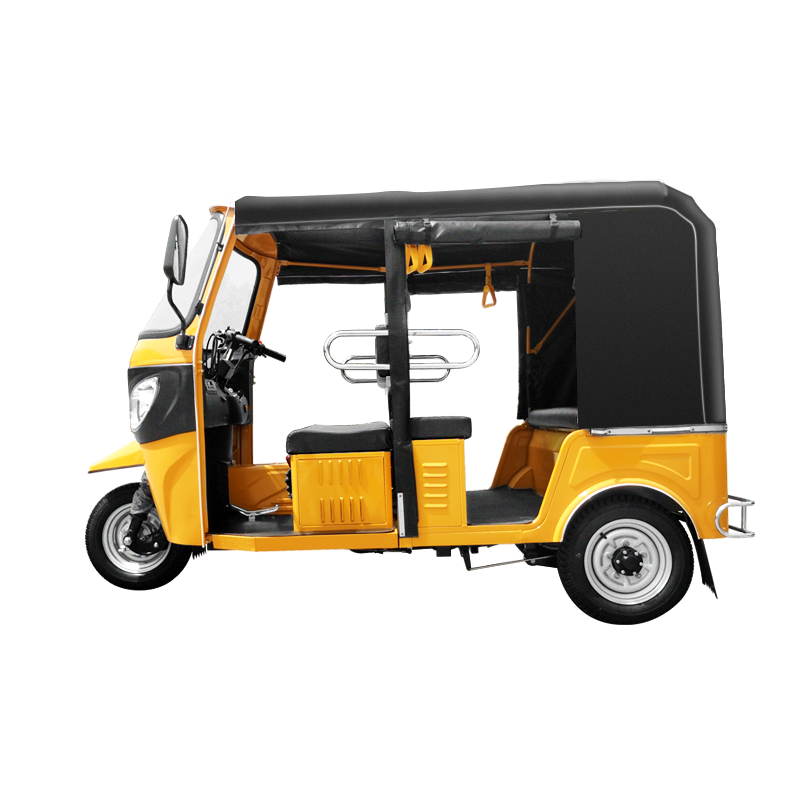

Three-Wheel Gasoline Passenger Tricycle
This three-wheel tricycle is powered by a gasoline engine and designed for transporting passengers. It features a half-closed cabin and double rocker arm for enhanced stability and comfort.
Technical Specifications
Overview
Efficient Urban Transportation
This three-wheel gasoline passenger tricycle is engineered for reliable urban commuting and taxi services. It features a robust water-cooled engine and a hybrid LPG/gasoline system for extended range and operational economy. Designed with passenger safety and comfort in mind, the vehicle includes an automotive-grade rear suspension and a reliable oil brake system.
Dimensions
- Overall Size (L*W*H)
- 2760*1320*1790mm
- Cargo Box Size (L*W*H)
- 1295*1300*435mm
Performance
Engine Performance
10.5 kw
Rated Power
14.5 N.m
Max Torque
200 CC
Engine Displacement
Engine Configuration
- Four stroke
- Water-cooled
- Compression Ratio 10:01
- Cylinder Bore 63.5mm
- Stroke 62.5mm
Technical
Transmission & Ignition
| Feature | Specification |
|---|---|
| Transmission | 5 speed + 1 reverse gear |
| Driving Mode | Shaft transmitted |
| Ignition Mode | DC CDI |
Features
- Vehicle Highlights
- LPG & Gasoline HybridOil Brake SystemAutomotive Grade SuspensionDamper Spring Shock AbsorptionEconomical Consumption
- Fuel Consumption
- 3.6kg/100km
