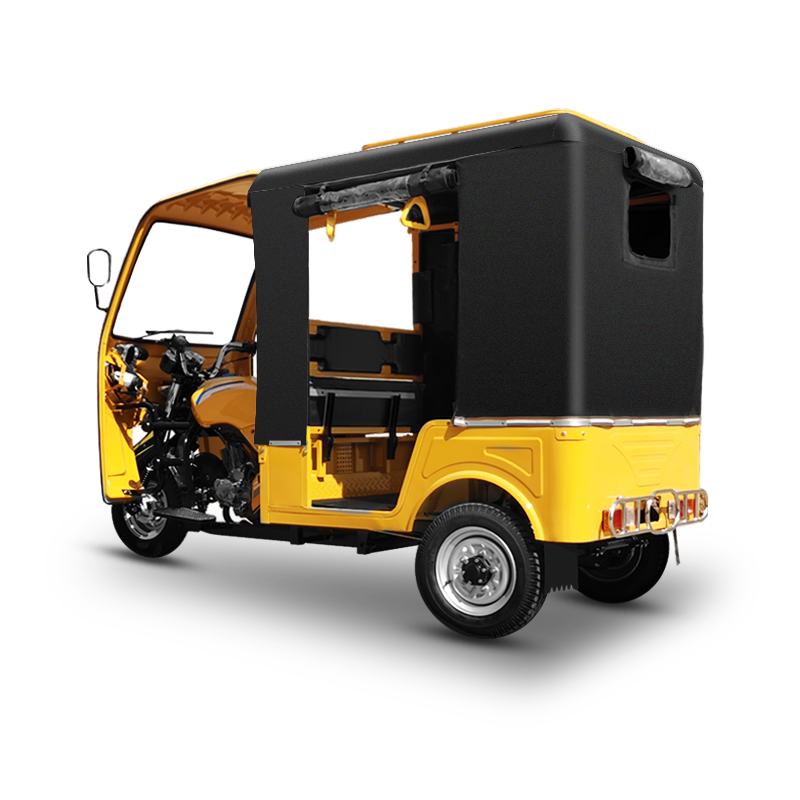

Three-Wheel Enclosed Passenger Tricycle
This three-wheel tricycle is designed for passenger transport and commercial use. It features an air-cooled gasoline engine, a semi-enclosed cabin, and a double rocker arm suspension.
Technical Specifications
Overview
Urban Passenger Mobility
This three-wheel enclosed passenger tricycle is specifically designed for reliable and comfortable urban transportation. Featuring a robust 150CC air-cooled engine and a spacious cargo/passenger cabin, it offers a practical solution for navigating city environments. The vehicle incorporates automotive-grade suspension and a durable chassis to ensure both passenger safety and long-term durability in varied conditions.
Dimensions
- Overall Size
- 3010 x 1175 x 1955 mm
- Cabin / Box Size
- 1440 x 1150 x 430 mm
Performance
Engine Metrics
8.5 kw
Rated Power
10 N.m
Max Torque
150 CC
Displacement
Engine Specifications
| Attribute | Detail |
|---|---|
| Engine Type | Four-stroke, air-cooled |
| Compression Ratio | 8.4:1—9.0:1 |
| Cylinder Specs | Φ62 x 49.5 mm |
| Ignition | DC CDI |
Technical Specs
Transmission & Drive
- 5 speed forward transmission
- 1 reverse gear
- Shaft-transmitted driving mode
- Full floating rear axle
- Fuel Tank Capacity
- 16 L
Features
- Vehicle Highlights
- Hydraulic shock absorptionAutomotive grade suspensionDouble grouped headlampsHeavy duty rear axle
