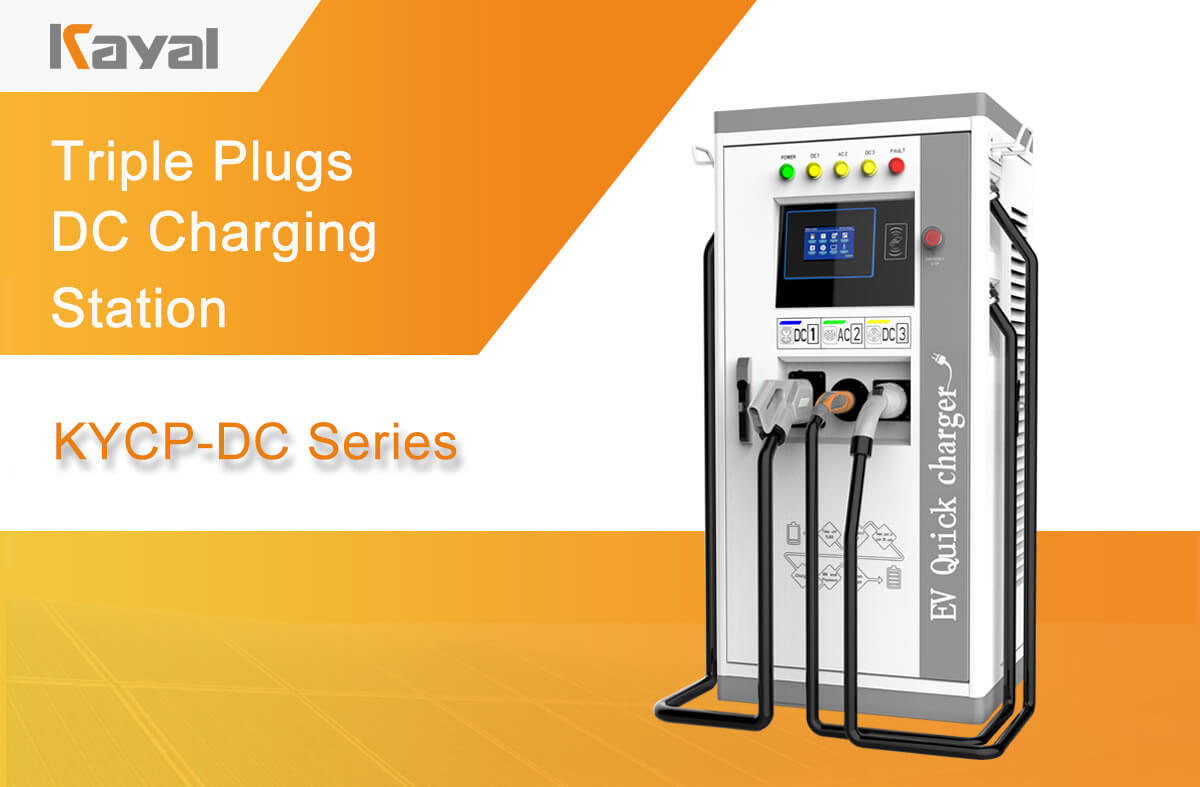

Three-Port DC Electric Vehicle Charging Station
This DC charging station is designed for fast and efficient charging of electric vehicles. It features three charging ports to accommodate different vehicle types and charging standards.
Technical Specifications
Product Overview
High-Efficiency Triple-Port Charging Solution
This advanced DC charging station features a modular, high-power platform designed for reliability and safety. It utilizes cutting-edge soft-switching and digital current sharing technology to ensure optimal efficiency and accurate power distribution. With support for multiple charging modes and intelligent status monitoring, it provides a seamless, fool-proof experience for public and commercial EV infrastructure.
Technical Specifications
Rated Output Power
180 kW
Rated Power
- Output Current Range
- 0-240A
- Input Frequency
- 45-65Hz
- Input Voltage Range
- AC380V ±20%, AC220V ±20%

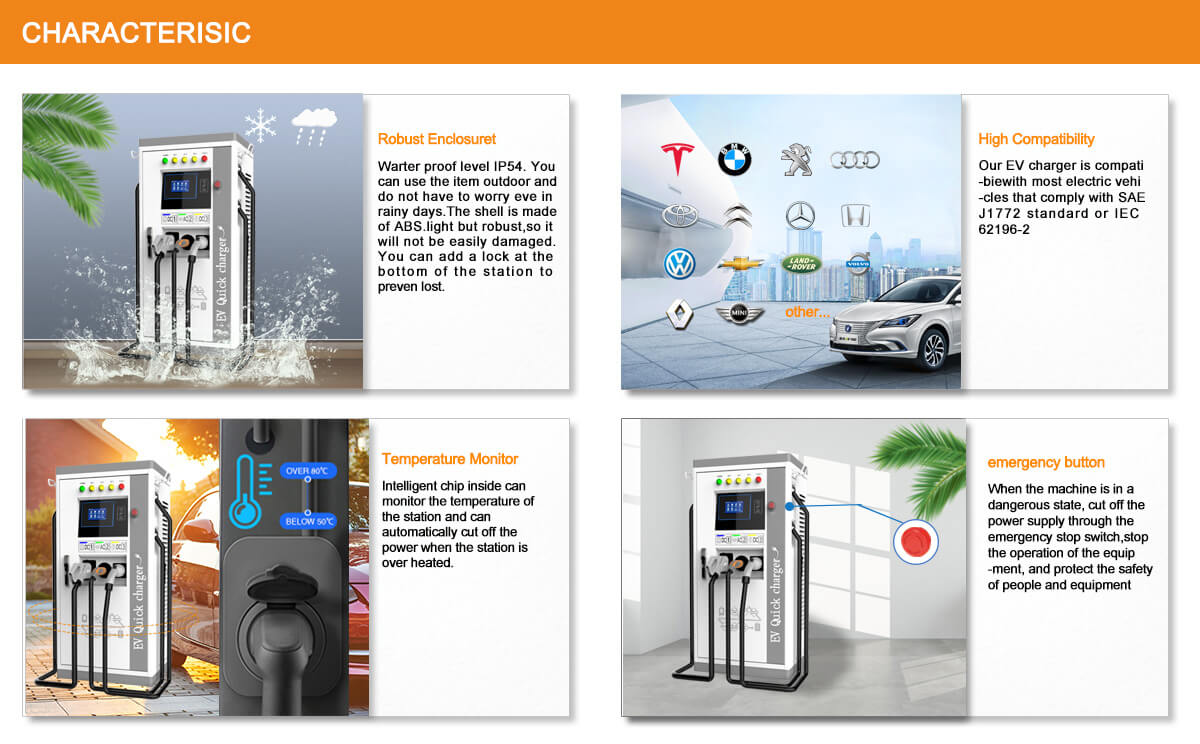

Performance & Safety
Protection Rating
IP45
- Leakage Protection
- ≤0.15 leakage current during ≤30mA operation
- Operating Temperature
- -20°C to +50°C
Operational Features
Communication Interfaces
- Ethernet
- RS-485
- Optional GPRS
- Charging Modes
- Timed chargingQuantitative chargingFixed amount chargingAutomatic charging

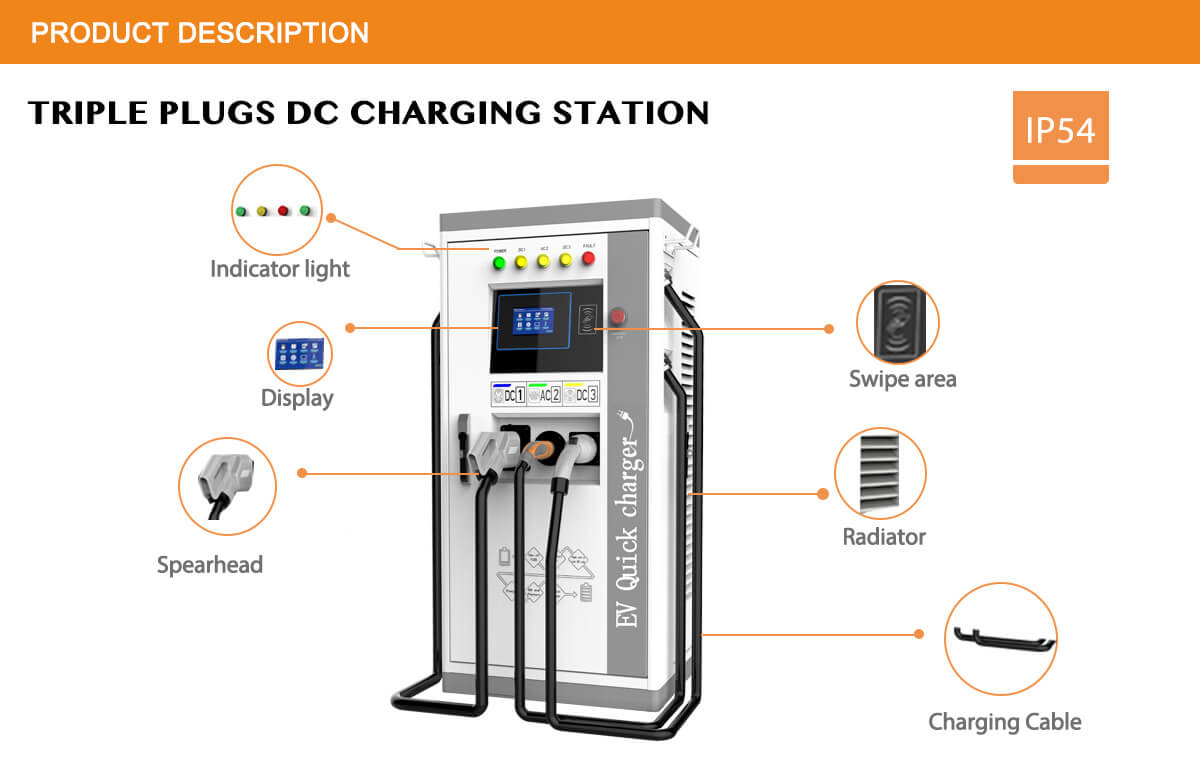

- User Interface
- 7-inch highlight color touch screen
