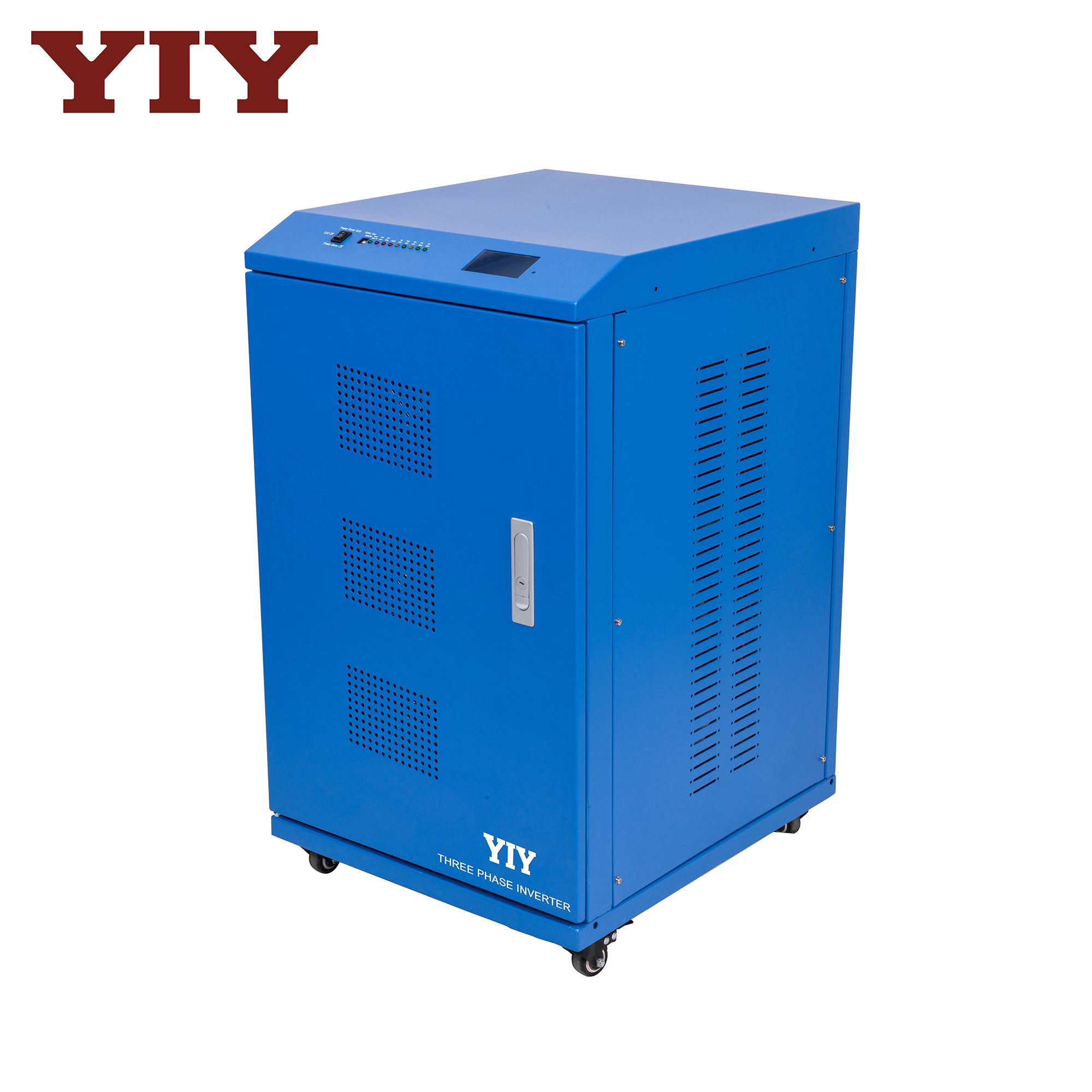

Three-Phase Low Frequency Solar Power Inverter, 3kW-45kW
This low-frequency inverter is designed for three-phase solar power systems, with a power range of 3kW to 45kW. It provides reliable AC power output with high efficiency, suitable for both on-grid and off-grid applications.
Technical Specifications
Product Overview
Professional Three-Phase Solar Inverter
This industrial-grade, low-frequency three-phase solar inverter delivers robust power conversion with output capacities ranging from 3kW to 45kW. Engineered for reliability, it features pure sine wave output and high-efficiency operation suitable for both on-grid and off-grid renewable energy systems. The unit includes advanced protection mechanisms and flexible communication options, ensuring stable power delivery for complex industrial, commercial, and residential applications.
Electrical Performance
- Continuous Output Power Range
- 3,000W - 45,000W
- Surge Rating (20s)
- 9,000W - 135,000W
- Peak Inverter Efficiency
- 89 %
- Total Harmonic Distortion (Full Linear Load)
- 3 %
System Compatibility
Supported Battery Types
- Gel U.S.A
- AGM1
- AGM2
- Sealed Lead Acid
- Gel Euro
- Open Lead Acid
- Calcium
- Supported DC Input Voltages
- 12VDC24VDC48VDC
Connectivity & Control
User Interface

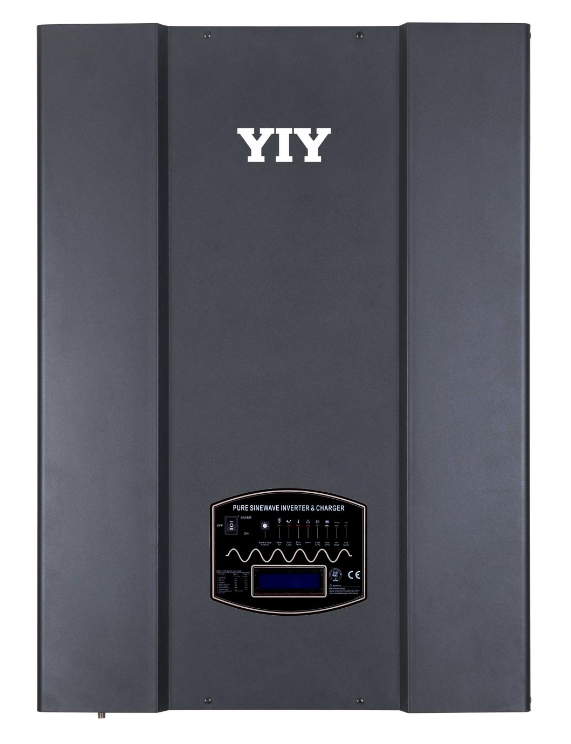

LED DisplayLCD Display

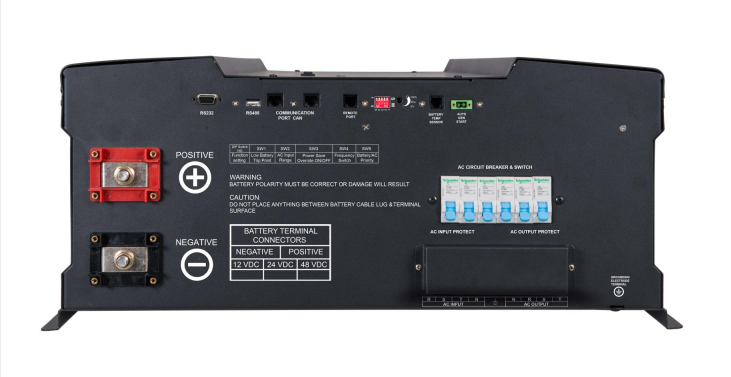

- Communication Ports
- RS232RS485CAN
Operational Metrics
Idle Consumption (Search Mode)
100 W
Idle Consumption
Safety & Standards
Key Protection Mechanisms
- Overload Protection
- Short Circuit Protection
- Over-voltage Protection
- Under-voltage Protection
- Over-temperature Protection
- Certifications
- CEETLULISOCCC
