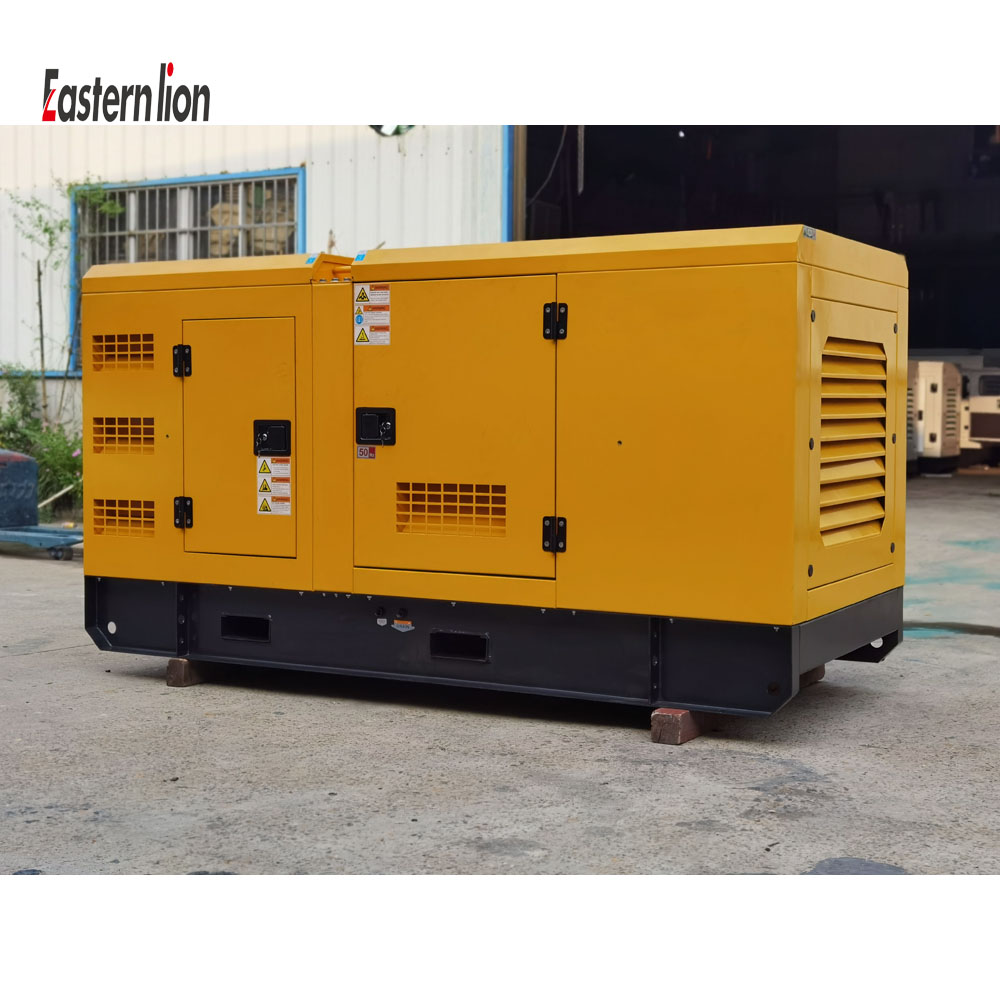

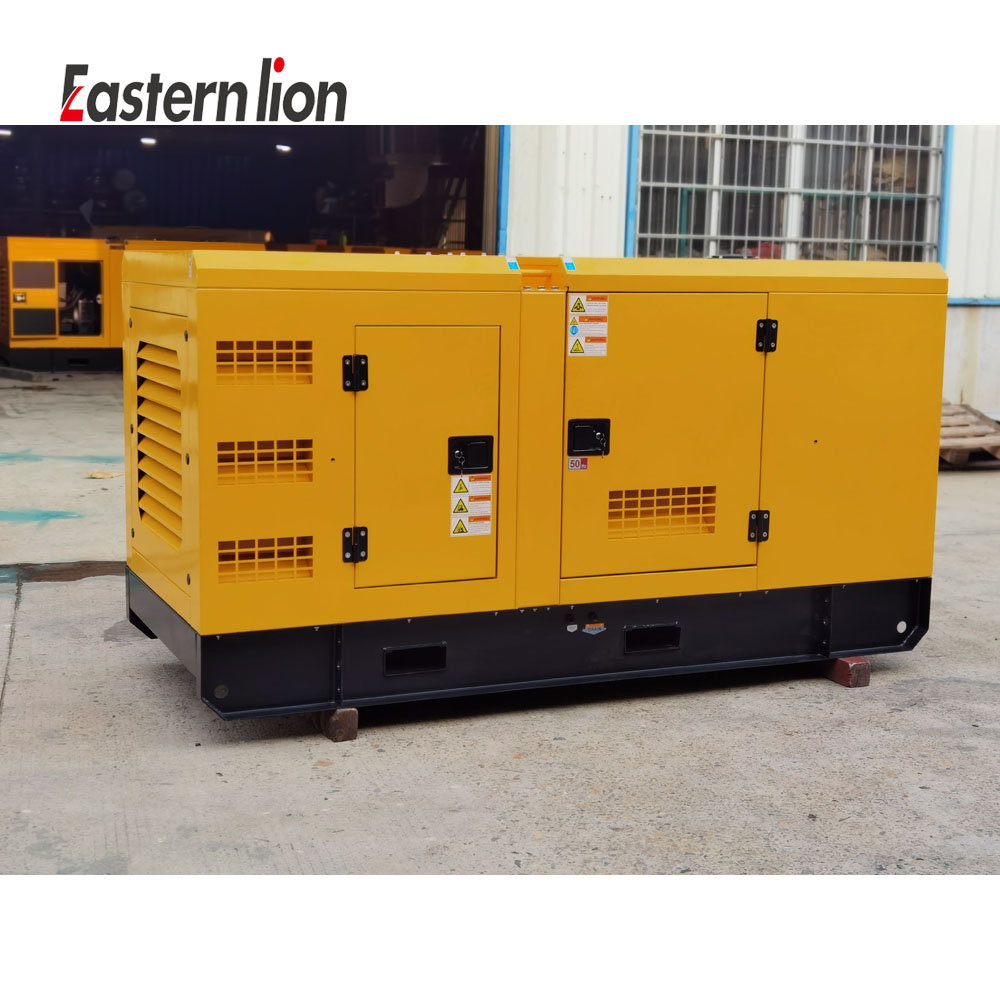

Three-Phase Diesel Generator Set
This three-phase diesel generator set provides a stable and consistent power supply. It is engineered for durability and performance, ensuring continuous operation in demanding environments.
Technical Specifications
Overview
Reliable Power Generation Solution
This three-phase diesel generator set is engineered for industrial and commercial applications, providing a stable and consistent power supply for both primary and backup needs. Designed with durability in mind, the unit features a heavy-duty steel base frame and advanced vibration damping to ensure long-term performance in demanding environments. With flexible configuration options, including silent and open types, it offers a versatile solution for construction sites, off-grid locations, and building power security.
Performance Specifications
Power Output Range
6 kW
Minimum Power
2,000 kW
Maximum Power
- Supported Voltages
- 400/230V380/220V220/110V
Design & Configuration
Configuration Type

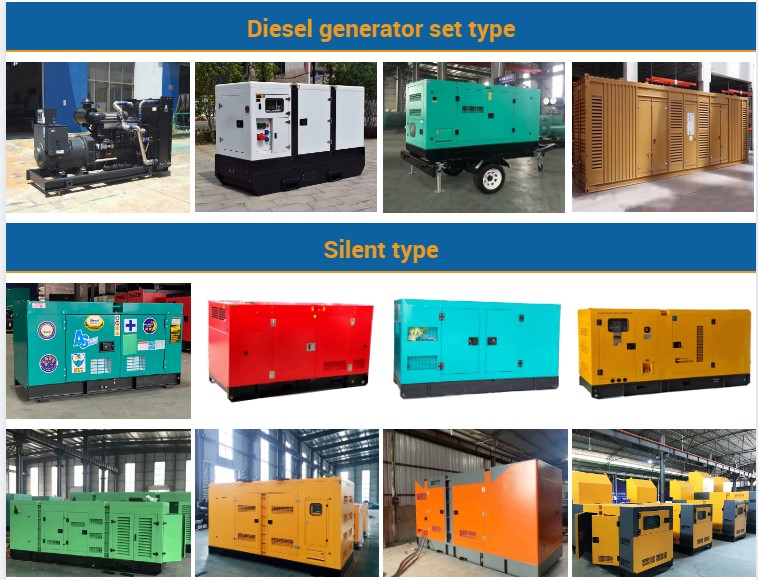

Open TypeSilent Type
Fuel Tank Configuration
- Base fuel tank (for units under 550kW)
- External daily fuel tank (for units above 550kW)
- Average 8-hour base fuel tank capacity

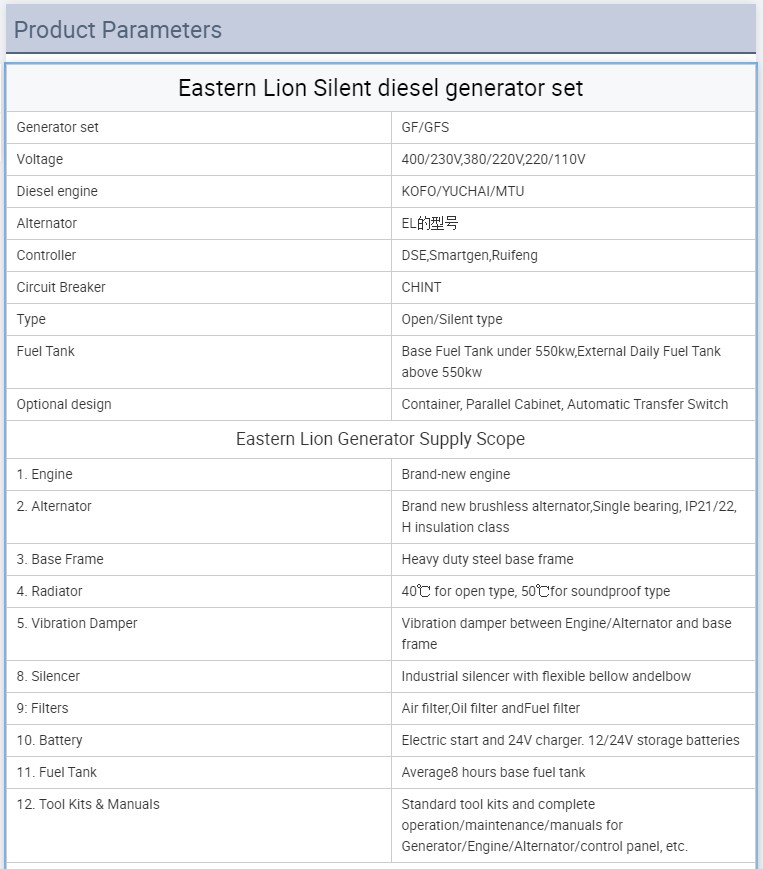

Technical Components
Alternator Details
| Feature | Specification |
|---|---|
| Type | Brushless |
| Bearing | Single Bearing |
| Protection Class | IP21/22 |
| Insulation Class | H |
Included Equipment
- Heavy-duty steel base frame
- Vibration damper (Engine/Alternator to base)
- Industrial silencer with flexible bellow and elbow
- Air, oil, and fuel filters
- Electric start system with 24V charger
- 12/24V storage batteries
- Standard tool kits
- Complete operation and maintenance manuals
- Optional Design Features
- ContainerizedParallel CabinetAutomatic Transfer Switch
