Technical Specifications
Product Overview

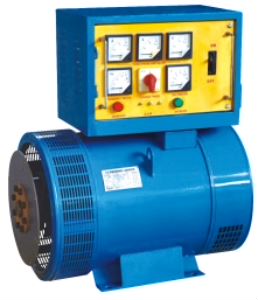

TFW Series Synchronous Alternator
The TFW series is a self-exciting constant voltage compound alternator engineered for superior dynamic performance and reliability. Featuring an integral salient-pole rotor and advanced cooling structure, this unit is designed to handle demanding industrial loads, including electric motors. Its robust, water-resistant, and salt-spray-protected construction ensures stable operation even in challenging environments like moist tropics and marine applications.
Technical Specifications
Rated Current
160 A
Rated Current Threshold
Insulation Class
Class BClass F
- Maximum Power Output
- 200 KW
- Rated Voltage
- 400 V
- Frequency
- 50/60Hz
Operating Conditions
Environmental Compliance
| Parameter | Limit |
|---|---|
| Max Altitude | 1000m |
| Ambient Temperature | -15°C to 40°C |
| Relative Humidity | ≤ 90% |
Construction
Bearing Configuration
- Single bearing
- Double bearing
- Housing Materials
- Cast ironSteel plate
