Three-Phase AC Brush Alternator
This three-phase AC brush alternator is designed for power generation in diverse settings. It features a brush excitation system for consistent voltage regulation and easy maintenance.
Technical Specifications
Product Overview

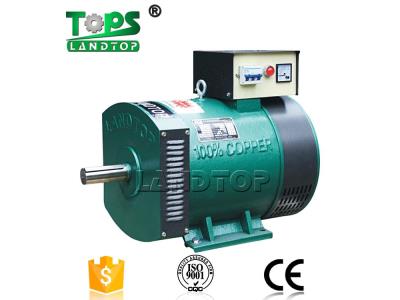

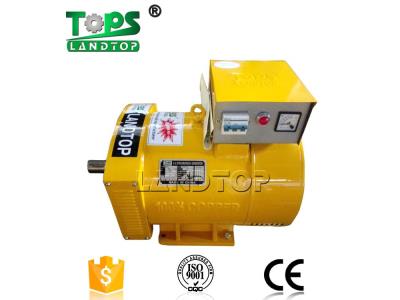

STC Series Three-Phase AC Brush Alternator
The STC series three-phase AC brush alternator is a robust and dependable power generation solution designed for diverse environments. Engineered with high-quality magnetic and electrical materials, this unit features a 3-phase, 4-wire star connection and is ideal for lighting and backup power in towns, rural areas, work-sites, and mountainous regions. Its brush excitation system and drip-proof, salient-pole rotating field design ensure stable voltage regulation and ease of maintenance.
Technical Specifications
Standard Performance
50 Hz
Standard Frequency
230 V
Standard Voltage
1,500 RPM
Operating Speed
Build Quality
- Insulation Class B
- IP21 Protection Rating
- Drip-proof design
- 100% Copper windings
- Electrical System
- 3-Phase4-WireStar ConnectionBrush ExcitationHarmonic Excitation
Compliance and Usage
Industry Certifications
CEISO 9001
Typical Applications
- Emergency Backup Power
- Countryside Lighting
- Construction Work-sites
- Mountain and Pasture Power
Available Capacity Range
| Model ID |
|---|
| STC-2KW |
| STC-3KW |
| STC-5KW |
| STC-7.5KW |
| STC-8KW |
| STC-10KW |
| STC-12KW |
| STC-15KW |
| STC-16KW |
| STC-20KW |
| STC-24KW |
| STC-30KW |
| STC-40KW |
| STC-50KW |
