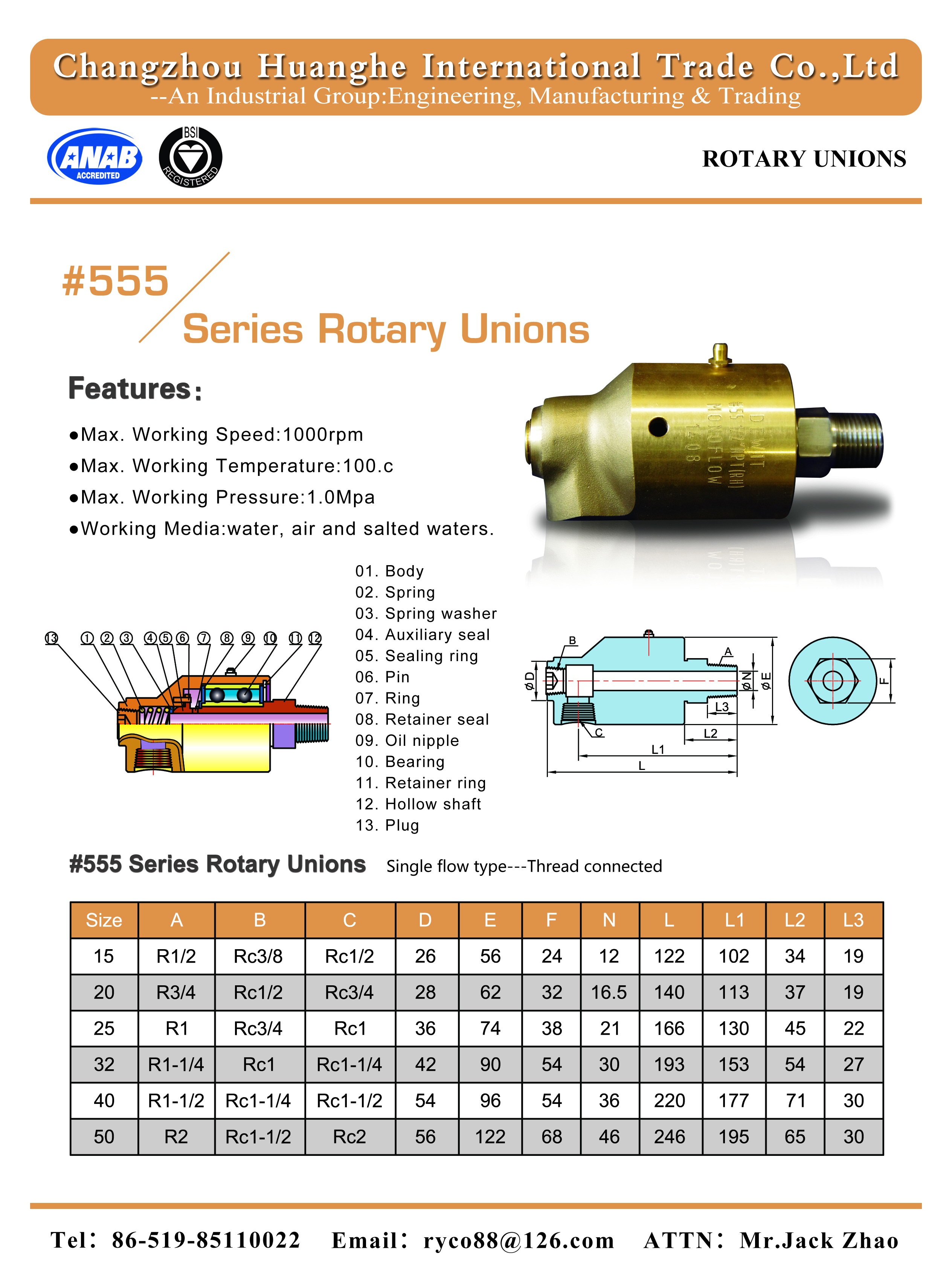

Threaded Rotary Joints
Threaded rotary joints are single flow type joints with thread connections. They are suitable for use with water, air and salted water media.
Technical Specifications
General Information
Professional Grade Rotary Unions
These high-performance rotary joints are engineered for demanding industrial applications requiring single-flow connectivity. Designed for reliability, the units feature a robust construction suitable for water, air, and salted water media. With a maximum operational speed of 1000 rpm and standard thread connections, these components provide versatile integration solutions for various mechanical systems.
Performance Metrics
1,000 rpm
Max Working Speed
100 °C
Max Working Temperature
1 MPa
Max Working Pressure
- Working Media
- WaterAirSalted Water
Technical Construction
Internal Components
- Body
- Spring
- Spring washer
- Auxiliary seal
- Sealing ring
- Pin
- Ring
- Retainer seal
- Oil nipple
- Bearing
- Retainer ring
- Hollow shaft
- Plug/Elbow
Dimensional Data
Available Sizes
| Size | Connection Type |
|---|---|
| 15 | R1/2 |
| 20 | R3/4 |
| 25 | R1 |
| 32 | R1-1/4 |
| 40 | R1-1/2 |
| 50 | R2 |
