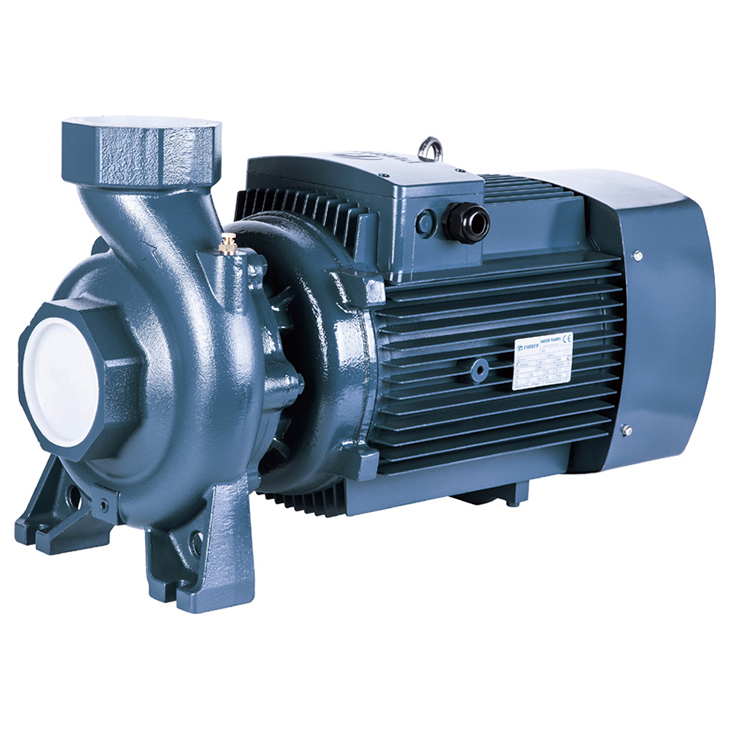

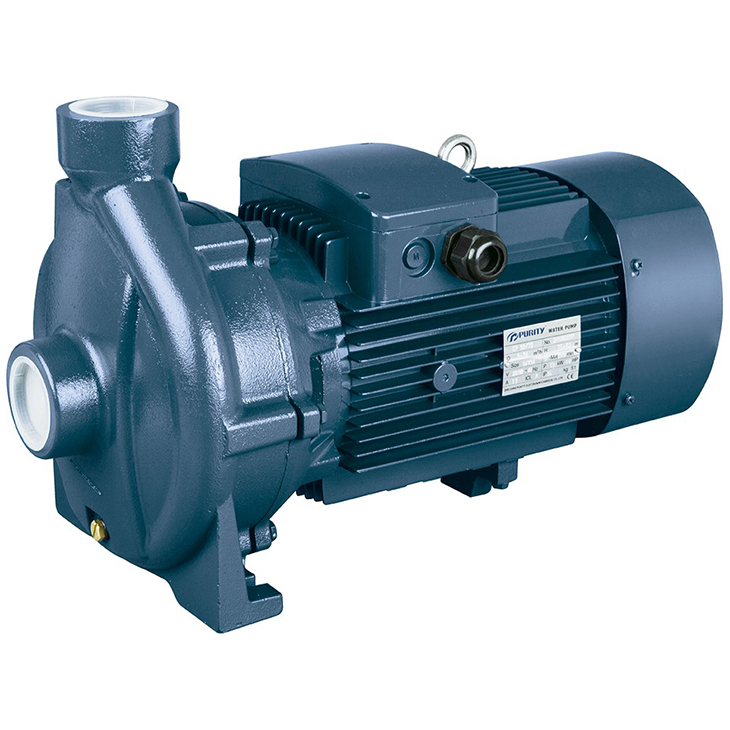

Thread Port Centrifugal Pump
This thread port centrifugal pump features a patented design. It is equipped with a high-efficiency motor and anti-corrosive coating.
Technical Specifications
Product Overview
High-Efficiency Centrifugal Pump
This thread port centrifugal pump is engineered for optimal hydraulic performance, featuring a patented design suitable for both square and round motor configurations. Built with an anti-corrosive pump case and high-quality NSK bearings, it ensures reliability in demanding environments. It is ideal for civil and agricultural applications, including irrigation, water drawing from natural sources, and industrial fluid handling.
Technical Specifications
- Motor Efficiency Class
- YE3 High Efficiency
- Protection Class
- IP55 Class F
- Port Size
- G20 thread
- Impeller Materials
- BrassCast Iron
Operating Limits
Liquid Temperature
-10 ℃
Min Temperature
120 ℃
Max Temperature
- Max Ambient Temp
- 50 ℃
- Max Working Pressure
- 16 bar
- Service Type
- Continuous service S1
Compliance and Patents
Model Series
PC Series
- Registered Patent Design
- 201530476290.2
