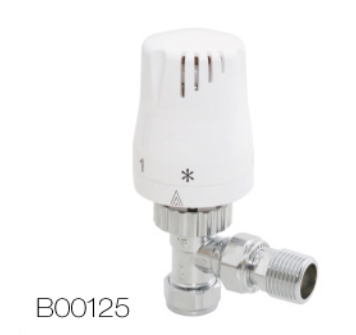

Thermostatic Radiator Valve with Plastic Head
This thermostatic radiator valve is a self-regulating valve that controls room temperature by adjusting hot water flow to the radiator. It features a white plastic head for temperature settings and a chrome-plated valve body with standard connections for easy installation.
Technical Specifications
Overview
High-Efficiency Temperature Control
This thermostatic radiator valve (TRV) is a self-regulating solution designed for hot water heating systems, providing precise room temperature control by varying water flow. Engineered for energy efficiency, it features a liquid sensor and is manufactured according to EN-215 standards with an A-rating energy grade. The durable construction includes a white plastic head and a chrome-plated valve body, ensuring both reliability and a clean aesthetic for professional installations.
Key Performance Metrics
Performance Highlights
Technical Specifications
Physical Dimensions
| Feature | Measurement |
|---|---|
| Overall Height | 123mm |
| Connection Size | R1/2 |
| Bottom Outlet Diameter | Ø15mm |
| Length Range | 56 - 61.5mm |
- Model Number
- B00125
Manufacturing & Quality
In-House Components
- Liquid Sensor
- Valve Head
- Valve Body
- Quality Standards
- EN-215 CertifiedA-Rating Energy GradeLiquid Sensor TechnologyFull-Automatic Production
