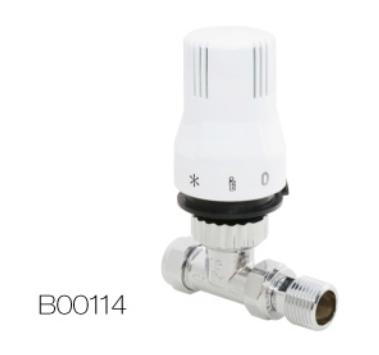

Thermostatic Radiator Valve with Liquid Sensor
This thermostatic radiator valve uses a liquid sensor to control temperature. It is designed to regulate the flow of hot water to the radiator, maintaining a consistent room temperature.
Technical Specifications
Overview
High-Efficiency Temperature Control
This thermostatic radiator valve (TRV) is a self-regulating solution designed for hot water heating systems, providing precise room temperature control by varying water flow. Engineered with an integrated liquid sensor and a durable chrome-plated valve body, it ensures reliable performance and significant energy savings. The unit is fully calibrated in-house and certified to meet high energy efficiency standards for both domestic and commercial applications.
Key Performance Metrics
Key Performance Metrics
14 Years
Years of R&D

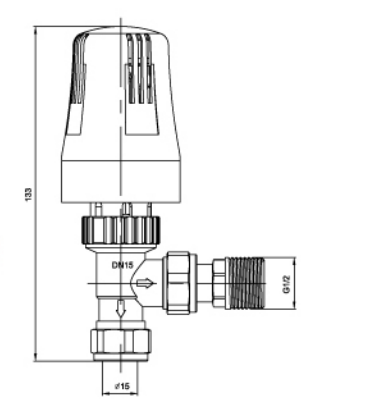

133 mm
Total Height
Technical Specifications
- Connection Size
- 15mm x 1/2"
- Nominal Diameter
- DN15
- Side Connection
- G1/2
- Bottom Connection Diameter
- 15 mm
Quality & Compliance
Energy Grade
A-rating
- Standards & Certifications
- EN-215
Features
Product Features
- Self-regulating liquid sensor
- Frost protection mode
- Multiple temperature settings
- Chrome-plated valve body
- In-house calibrated components
- Corrosion-resistant construction
Product Variants
- Available Model Codes
- B00111B00112B00113B00114
