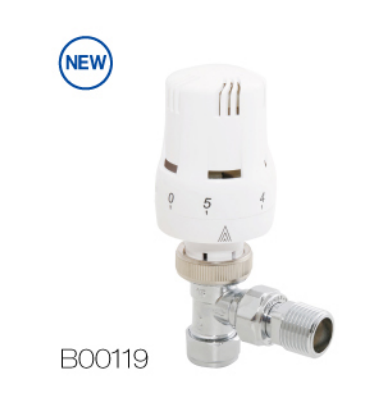

Thermostatic Radiator Valve with Liquid Sensor
This thermostatic radiator valve uses a liquid sensor to control temperature. Its plastic head allows users to adjust numbered settings and includes frost protection.
Technical Specifications
Overview
High-Efficiency Temperature Control
This thermostatic radiator valve is engineered for precise room temperature management in professional heating systems. Featuring an integrated liquid sensor and an A-rated energy grade, it ensures optimal thermal comfort while minimizing energy consumption. The durable chrome-plated brass construction and compliance with EN-215 standards make it a reliable choice for standard radiator installations.
Key Features
Energy Efficiency
A-rating Energy Grade
- Certifications
- EN-215 Certified
Technical Specifications
Physical Dimensions
127 mm
Total Height
15 mm
Connection Size
Connection Type
| Component | Specification |
|---|---|
| Inlet/Outlet Connection | R1/2" |
| Fitting Type | Compression |
| Pipe Diameter | ø15 |
- Sensor Technology
- Liquid Sensor
Operation
Temperature Adjustment
- Numbered settings from 0 to 5
- Frost protection setting
- Automatic flow adjustment based on liquid sensor
Manufacturing Quality
Quality Assurance
- 14+ years of liquid sensor research
- Full-automatic production line
- In-house calibration of liquid sensor, head, and body
- Chrome-plated brass body for corrosion resistance
