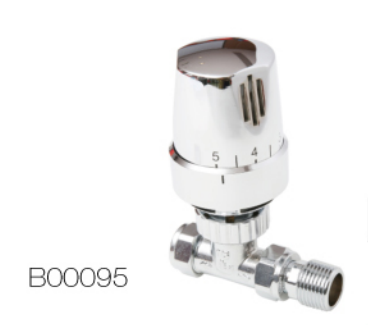

Thermostatic Radiator Valve with Liquid Sensor
This thermostatic radiator valve uses a liquid sensor to control temperature. Its plastic head allows for easy adjustment of the desired room temperature.
Technical Specifications
Overview
High-Efficiency Temperature Control
This thermostatic radiator valve is engineered for precise room temperature regulation in HVAC&R systems. Featuring an integrated liquid sensor and an A-rated energy efficiency grade, it optimizes hot water flow to radiators for significant energy savings. The robust construction and EN-215 certification ensure reliable performance in both residential and commercial heating environments.
Key Features
Key Highlights
14 Years
Years of R&D
215 Certified
EN Standard
Technical Specifications
Energy Grade
A-Rating
- Sensor Type
- Liquid Sensor
- Compliance
- EN-215

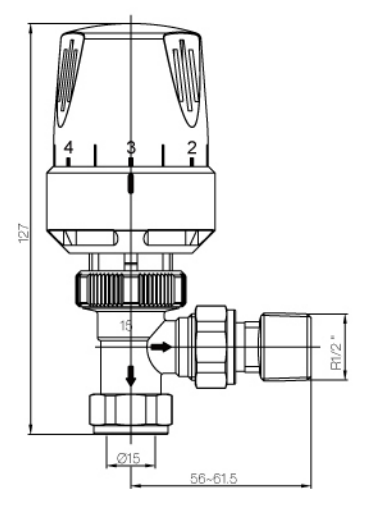

Dimensions & Connection
- Total Height
- 127 mm
- Bottom Connection Diameter
- 15 mm
- Side Connection
- R1/2"
- Horizontal Distance Range
- 56mm - 61.5mm
Product Variants
Available Model Codes
| Model Code | Specification |
|---|---|
| B00092 | 1/2" |
| B00093 | 1/2" |
| B00094 | 15mm x 1/2" |
| B00095 | 15mm x 1/2" |
Operation
Temperature Settings
- Adjustable range from 1 to 5
- Manual control via thermostatic head
- Precise flow regulation
