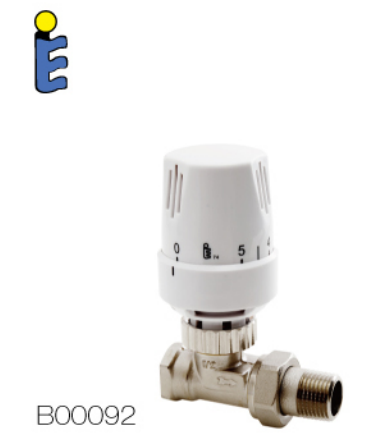

Thermostatic Radiator Valve with Liquid Sensor
This thermostatic radiator valve uses a liquid sensor to control temperature. The valve features a plastic head and is designed for installation on radiators.
Technical Specifications
Overview
High-Efficiency Temperature Control
This Thermostatic Radiator Valve features a high-precision liquid sensor designed for accurate room temperature regulation in HVAC&R systems. Engineered with over 14 years of research, all key components including the sensor, head, and body are manufactured and calibrated in-house to ensure consistent quality. The unit is certified to EN-215 standards and carries an A-rating energy grade, making it an ideal choice for professional heating installations seeking energy efficiency.
Key Highlights
Performance Highlights
14 Years
Years of R&D
215 Certified
EN Standard
Technical Specifications
Energy Grade
A-rating
- Valve Connection
- 15mm
- Radiator Connection
- R1/2"
- Standards Compliance
- EN-215

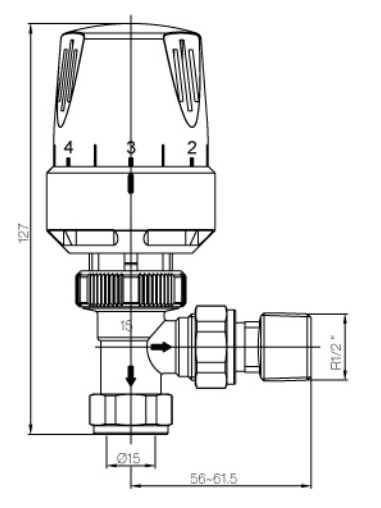

Dimensions
- Total Height
- 127 mm
- Bottom Diameter
- 15 mm
- Center to Connection Distance
- 56 - 61.5mm
Product Variations
Available Model Codes
| Code | Specification |
|---|---|
| B00092 | 1/2" |
| B00093 | 1/2" |
| B00094 | 15mm x 1/2" |
| B00095 | 15mm x 1/2" |
Features
In-house Components
- Liquid Sensor
- Thermostatic Head
- Valve Body
- Temperature Settings
- Adjustable range from 2 to 4
