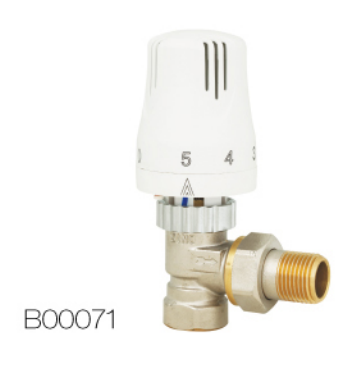

Thermostatic Radiator Valve with Liquid Sensor
This thermostatic radiator valve is a self-regulating valve designed for hot water heating systems. It uses a liquid sensor to control temperature and features a plastic head for adjusting the desired room temperature.
Technical Specifications
Overview
High-Precision Temperature Control
This Thermostatic Radiator Valve (TRV) is engineered for precise room temperature regulation in hot water heating systems. Featuring an integrated liquid sensor and self-regulating mechanics, it automatically adjusts water flow to maintain consistent comfort levels. Manufactured and calibrated in-house according to EN-215 standards, it offers a reliable solution for energy-efficient climate control.
Key Highlights
Performance Highlights
14 Years
R&D Experience
1 A
Energy Rating
Technical Specifications
Physical Dimensions
| Parameter | Value |
|---|---|
| Total Height | 133mm |
| Connection Size | DN15 |
| Outlet Size | G1/2 |
| Bottom Connection Diameter | φ15 |
- Temperature Settings
- Numbered scale 1-5 for user adjustment
Construction & Quality
Available Surface Treatments
- Chrome plating polish
- Nickle plating polishing
- Nickle plating water polish
- Nickle plating sand polish
In-House Manufactured Components
- Liquid sensor
- Valve head
- Valve body
- Standards & Compliance
- EN-215A-rating Energy GradeLiquid Sensor Technology
