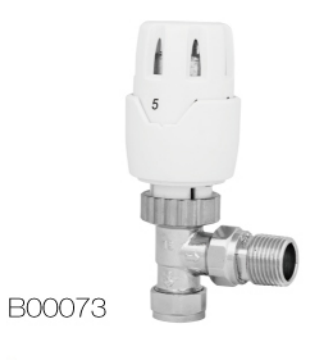

Thermostatic Radiator Valve with Liquid Sensor
This thermostatic radiator valve features a liquid sensor for temperature regulation. The valve modulates hot water flow to the radiator to maintain a consistent room temperature.
Technical Specifications
Overview
High-Efficiency Temperature Control
This Thermostatic Radiator Valve (TRV) is engineered for precise room temperature management by automatically modulating hot water flow. Featuring an integrated liquid sensor and an A-rating energy grade, it ensures optimal heating efficiency and comfort. All key components, including the sensor, head, and body, are manufactured and calibrated in-house to meet rigorous international standards.
Key Performance Metrics
Performance Highlights
14 Years
Years Research Experience
5
Max Heat Setting
Technical Specifications
Energy Efficiency Class
A-rating
- Sensor Type
- Liquid Sensor
- Compliance Standards
- EN-215
- Side Outlet Thread
- R1/2
Dimensions
Diameter Specifications
| Position | Measurement | Unit |
|---|---|---|
| Top Diameter | 48 | mm |
| Middle Diameter | 42 | mm |
| Bottom Diameter | 15 | mm |
- Total Height
- 125 mm
Manufacturing
In-House Components
- Liquid Sensor
- Valve Head
- Valve Body
- Production Method
- Full-automatic production line
