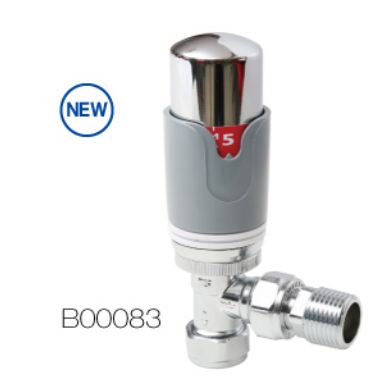

Thermostatic Radiator Valve with Liquid Sensor
This thermostatic radiator valve uses a liquid sensor to control temperature. The valve features a plastic head and is designed for use in hot water heating systems.
Technical Specifications
Overview
High-Efficiency Temperature Control
This Thermostatic Radiator Valve (TRV) is a self-regulating solution designed for hot water heating systems, allowing for precise room-by-room temperature management. Engineered with a high-quality liquid sensor and manufactured to EN-215 standards, it ensures an A-rating energy grade for optimal efficiency. The valve body and head are calibrated in-house to provide reliable performance and improved comfort in HVAC&R applications.
Key Performance
Energy Efficiency
Core Metrics
Technical Specifications

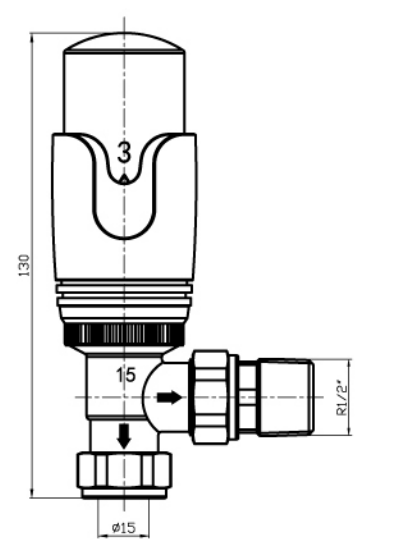

Connection Details
| Feature | Specification |
|---|---|
| Valve Body Connection | 15mm / ø15 |
| Side Connection | R1/2" |
| Standard Specification | 1/2" |
- Compatible Model Codes
- B00082B00083B00084B00085
Manufacturing & Standards
Compliance
- EN-215 Certified
- In-house calibrated liquid sensor
- Full-automatic production line manufacturing
Usage & Application
Best Practices for Efficiency
The TRV controls the flow of hot water to the radiator but does not control the boiler directly. For optimal performance, the valves should be set to the maximum setting while the boiler is off. Note that lower settings will result in the room heating up more slowly and to a lower target temperature.
- Applications
- HVAC&RHot Water Heating SystemsResidential HeatingCommercial Radiators
