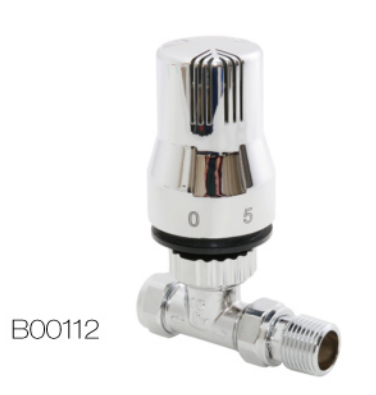

Thermostatic Radiator Valve with Liquid Sensor
This thermostatic radiator valve controls the temperature of individual radiators in hydronic heating systems. It features a liquid sensor and plastic head for precise temperature adjustment.
Technical Specifications
Product Overview
High-Efficiency Temperature Control
This Thermostatic Radiator Valve (TRV) is engineered for precise temperature management in residential and commercial hydronic heating systems. Featuring an integrated liquid sensor and an A-rated energy efficiency grade, it automatically regulates hot water flow to maintain optimal comfort while reducing energy consumption. The valve is manufactured and calibrated in-house to ensure compliance with EN-215 standards.
Key Performance Metrics
Key Performance Metrics
14 Years
Years of R&D
133 mm
Overall Height
Technical Specifications
Connection Details
| Component | Specification |
|---|---|
| Nominal Diameter | DN15 |
| Radiator Connection | G1/2 |
| Pipe Connection | 15mm |
| Valve Specification | 15mm x 1/2" |
- Application
- Suitable for residential and commercial HVAC&R heating systems.
Design & Construction
Materials & Finish
- Brass valve body construction
- Chrome-plated finish
- Thermostatic head with numbered settings
- Integrated liquid sensor
Compliance & Quality
- Standards & Certifications
- EN-215 CertifiedA-Rating Energy GradeFull-Automatic Production

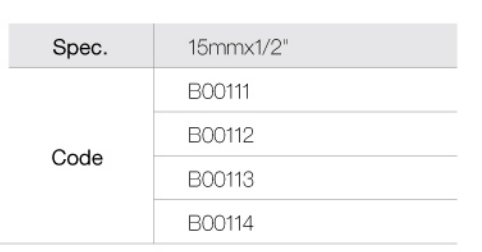

Identification
Model Identifiers
B00111B00112B00113B00114
