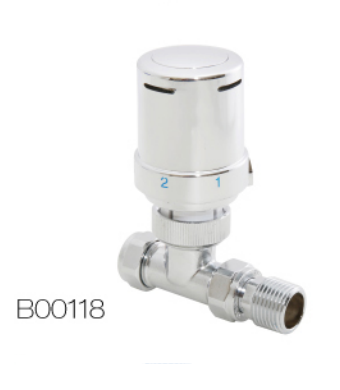

Thermostatic Radiator Valve with Liquid Sensor
This thermostatic radiator valve uses a liquid sensor to control temperature. Its plastic head allows for adjusting the flow of hot water to the radiator.
Technical Specifications
Overview
High-Efficiency Thermostatic Control
This thermostatic radiator valve features a high-precision liquid sensor and is designed for self-regulating temperature control in hot water heating systems. Engineered for energy efficiency, it carries an A-rating energy grade and is manufactured in accordance with EN-215 standards. The valve's adjustable settings allow for precise room temperature management, ensuring consistent comfort and significant energy savings.
Key Performance Metrics
Core Performance
14 Years
Years of R&D
1 A
Energy Grade
Technical Specifications

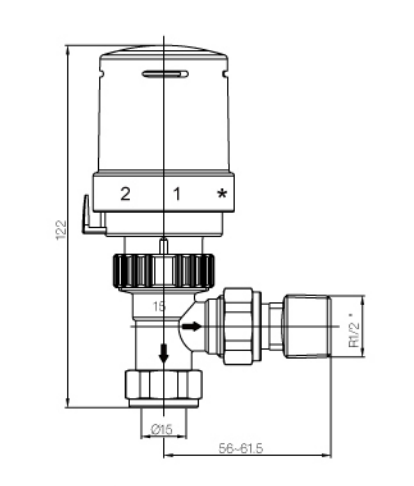

Dimensions & Sizing
| Parameter | Measurement |
|---|---|
| Total Height | 122mm |
| Bottom Diameter | Ø15mm |
| Connection Distance | 56 - 61.5mm |
| Side Connection | R1/2" |
| Specification | 15mm x 1/2" |
- Sensor Type
- Liquid Sensor
Compliance & Quality
- Standards & Ratings
- EN-215 CertifiedA-Rating Energy Grade
Manufacturing Details
Manufacturing Standards
- Full-automatic production line
- In-house calibrated liquid sensor
- In-house manufactured head and body
- Integrated quality control for all 3 key elements
Compatibility
Compatible Accessories
C00069C00068B00117B00118
Design
- Finish
- Smooth Chrome
- Application Category
- HVAC&R Valves and Accessories
