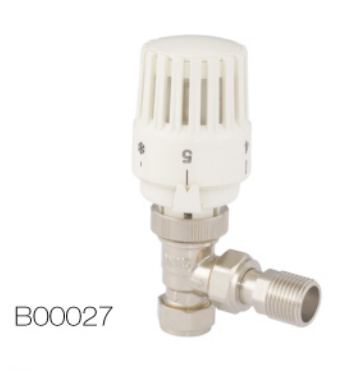

Thermostatic Radiator Valve with Liquid Sensor
This thermostatic radiator valve uses a liquid sensor to control temperature. It features a plastic head.
Technical Specifications
Product Overview
High-Efficiency Temperature Control
This Thermostatic Radiator Valve (TRV) is designed for precise temperature control of individual radiators in hydronic heating systems. Featuring an integrated liquid sensor and an A-rated energy efficiency grade, it ensures optimal comfort while reducing energy consumption. All key components, including the head, body, and sensor, are manufactured and calibrated in-house to meet rigorous quality standards.
Performance & Certification
Energy Efficiency
A-ratingEN-215 Certified
- Sensor Technology
- Liquid Sensor
Technical Dimensions
Physical Dimensions
127 mm
Total Height
49.5 mm
Top Diameter
Connection Details
| Specification | Value |
|---|---|
| Nominal Diameter | DN15 |
| Thread Size | G1/2 |
| Connection Type | G1/2 |
Design & Construction
In-House Components
- Liquid sensor
- Thermostatic head
- Valve body
- Valve Body Material
- Brass or corrosion-resistant metal
Operation
- Temperature Settings
- Numbered 1-5 with comfort levels
- Flow Direction
- Yes
