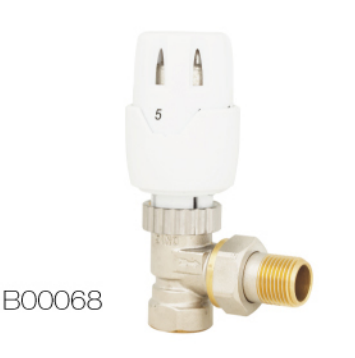

Thermostatic Radiator Valve with Liquid Sensor
This thermostatic radiator valve uses a liquid sensor to control temperature. It features a plastic head and is designed for installation in radiator systems.
Technical Specifications
Overview
High-Efficiency Temperature Control
This Thermostatic Radiator Valve is engineered for precise temperature regulation in both residential and commercial heating systems. Featuring an integrated liquid sensor and an A-rating energy efficiency grade, it ensures optimal heat distribution and energy savings. The valve is manufactured and calibrated in-house according to EN-215 standards to guarantee reliable, long-lasting performance.
Technical Standards
Standard Compliance
EN-215 CertifiedA-Rating Energy Grade
Key Features
Core Components
- High-precision liquid sensor
- Thermostatic control head
- Durable valve body
- Numbered temperature settings
Dimensions & Connections
Physical Dimensions
125 mm
Total Height
48 mm
Top Diameter
42 mm
Knob Diameter
Connection Sizes
| Connection Point | Specification |
|---|---|
| Side Connection | R1/2 |
| Bottom Connection | Ø15mm |
Manufacturing
- Production Quality
- 14+ years of research in liquid sensor technology with full-automatic production lines.
