Thermostatic Radiator Valve with Liquid Sensor
This thermostatic radiator valve uses a liquid sensor to control temperature. It automatically regulates hot water flow to radiators in order to maintain a desired room temperature.
Technical Specifications
Overview
High-Efficiency Temperature Control
This Thermostatic Radiator Valve (TRV) is engineered for precise room temperature regulation within central heating systems. Featuring an integrated liquid sensor and an A-rating energy grade, it optimizes heat output to prevent overheating and maximize energy efficiency. The durable brass construction and EN-215 certification ensure reliable, long-term performance for professional HVAC installations.
Performance Metrics
Key Performance Indicators
14 Years
R&D Experience
1 A
Energy Grade
Technical Specifications

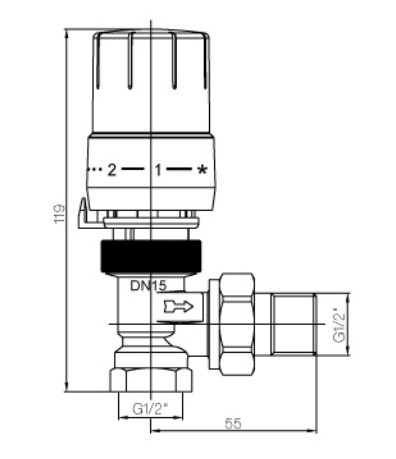

Physical Dimensions
- Total Height: 119mm
- Horizontal Projection: 55mm
- Specification: 15mm x 1/2"
- Connection Size
- DN15 (G1/2")
- Construction Material
- Brass or Nickel-plated Brass
Compliance & Quality
- Standards & Certifications
- EN-215A-Rating Energy GradeLiquid Sensor Technology

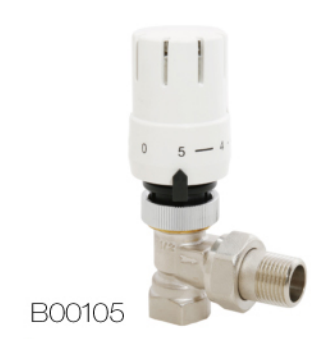

Product Variants
Available Product Codes
B00103B00104B00105B00106
Operation
Control Features
- Adjustable temperature settings (0-5 scale)
- Frost protection setting (star symbol)
- Directional flow indicator on valve body
- Automatic flow regulation
Manufacturing
- Manufacturing Standards
- Full-automatic production line with in-house calibration of liquid sensor, head, and body.
