Thermostatic Radiator Valve with Liquid Sensor
This thermostatic radiator valve uses a liquid sensor to control temperature. The valve features a plastic head and is designed for use with radiators.
Technical Specifications
Overview
High-Efficiency Temperature Control
This thermostatic radiator valve is designed for precise temperature control of individual radiators, enhancing both comfort and energy efficiency in central heating systems. Featuring a high-quality liquid sensor and a durable chrome-plated brass body, it ensures long-term reliability and performance. The valve is manufactured and calibrated in-house to meet rigorous international standards, making it an ideal choice for residential and commercial heating applications.
Key Performance Metrics
Performance Highlights
A Rating
Energy Grade
14 Years
R&D Experience
Technical Specifications

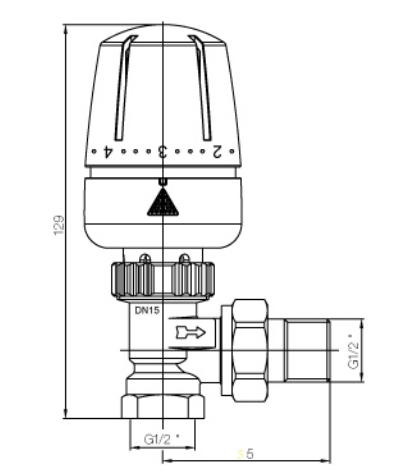

Physical Dimensions
- Height: 129mm
- Width: 55mm
- Spec: 15mm x 1/2"
- Connection Size
- DN15 (G1/2")
- Construction Material
- Chrome-plated brass
Standards & Compliance
- Certifications
- EN-215A-rating Energy Grade
Operation
Sensor Technology
Liquid Sensor
- Temperature Settings
- Numbered settings from 1 to 5
Product Variants
Available Models
| Code | Specification |
|---|---|
| B00096 | 1/2" |
| B00097 | 1/2" |

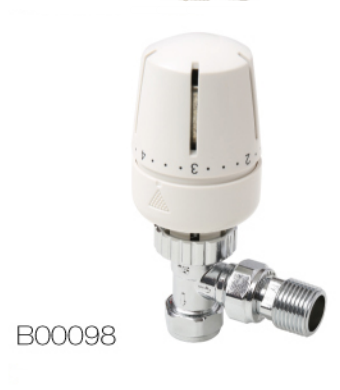

| B00098 | 15mm x 1/2" |
| B00099 | 15mm x 1/2" |
