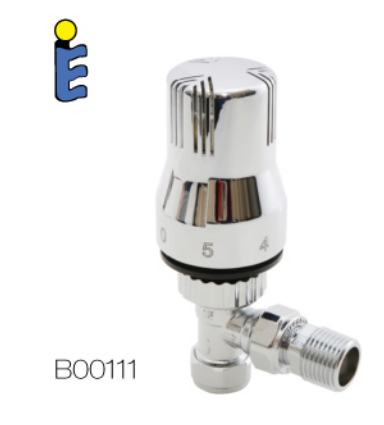

Thermostatic Radiator Valve with Liquid Sensor
This thermostatic radiator valve uses a liquid sensor to control temperature. It features a plastic head for manual adjustment.
Technical Specifications
Overview
High-Efficiency Thermostatic Control
This thermostatic radiator valve is engineered for precise temperature management in heating systems, featuring a high-performance liquid sensor. Manufactured and calibrated in-house, it ensures efficient heat distribution and significant energy savings for commercial and residential applications. The unit is fully compliant with EN-215 standards and holds an A-rating energy grade for superior performance.
Key Performance Metrics
Key Performance Metrics
14 yrs
Years Researching Liquid Sensors
215 EN
EN Standard Compliance
Technical Specifications

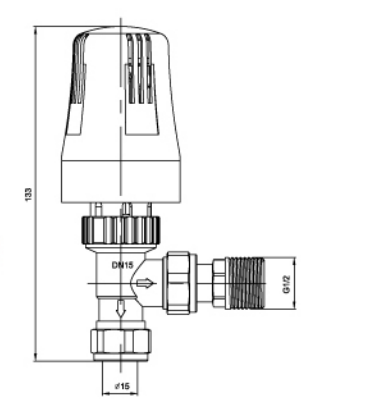

Physical Dimensions
| Parameter | Value |
|---|---|
| Overall Height | 133mm |
| Bottom Connection | φ15 |
| Side Connection | G1/2 |
| Valve Body Size | DN15 |
| General Spec | 15mm x 1/2" |
- Model Range
- B00111B00112B00113B00114
Construction & Quality
Manufacturing Standards
- Full-automatic production line assembly
- In-house calibration of liquid sensor, head, and body
- Chrome-plated finish for durability
- Manual adjustment knob with numbered settings
Compliance & Efficiency
Certifications
EN-215 CertifiedA-Rating Energy Grade
- Energy Efficient
- Yes
