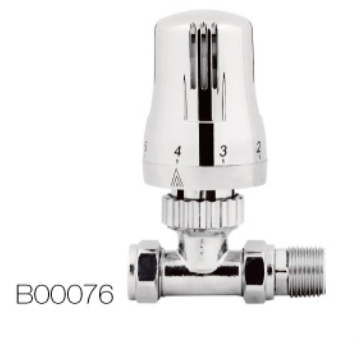

Thermostatic Radiator Valve with Chrome Finish
This thermostatic radiator valve regulates the temperature of individual radiators in heating systems. It features a liquid sensor and a plastic head for temperature control.
Technical Specifications
Product Overview
High-Efficiency Temperature Control
This thermostatic radiator valve (TRV) provides precise temperature regulation for individual radiators in hydronic heating systems. Featuring a high-quality liquid sensor and an A-rated energy grade, it automatically adjusts water flow to maintain consistent room comfort while significantly reducing energy consumption. The durable brass construction and polished chrome finish ensure both long-term reliability and a modern aesthetic for any interior.
Key Features
Energy Efficiency
A-rating Energy GradeEN-215 Certified
Performance Highlights
14 Years
Years of R&D
Technical Specifications

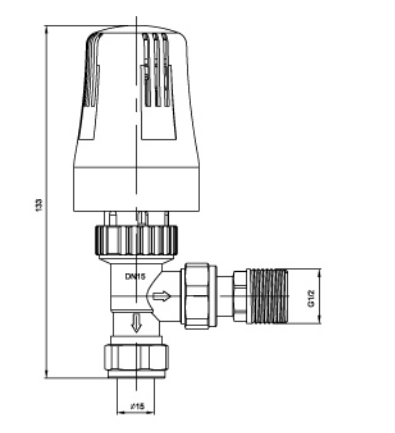

Installation Dimensions
| Parameter | Value |
|---|---|
| Overall Height | 133mm |
| Connection Size | DN15 / G1/2 |
| Pipe Compatibility | 15mm |
| Body Material | Brass |
Design & Build
Available Orientations
- Straight
- Angle
- Surface Treatment
- Chrome Plating PolishWater Polish Chrome Plating
Components
In-house Manufactured Components
- Liquid Sensor
- Valve Head
- Valve Body
Operation
- Control Type
- Self-regulating thermostatic head with numerical scale (1-5)
- Automatic Regulation
- Yes
