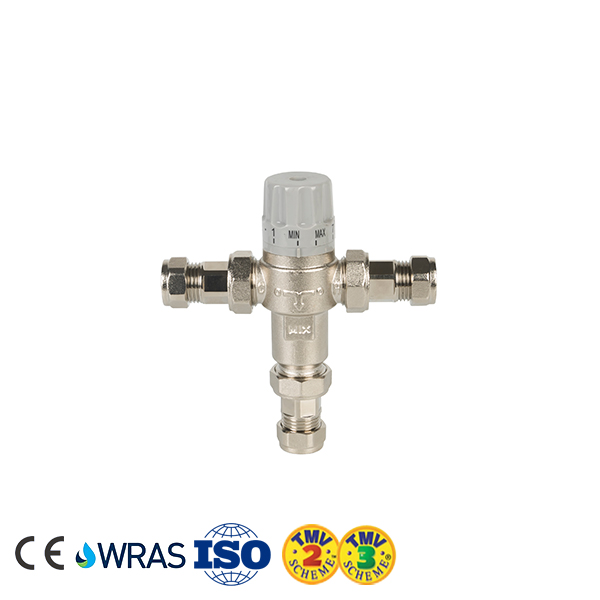

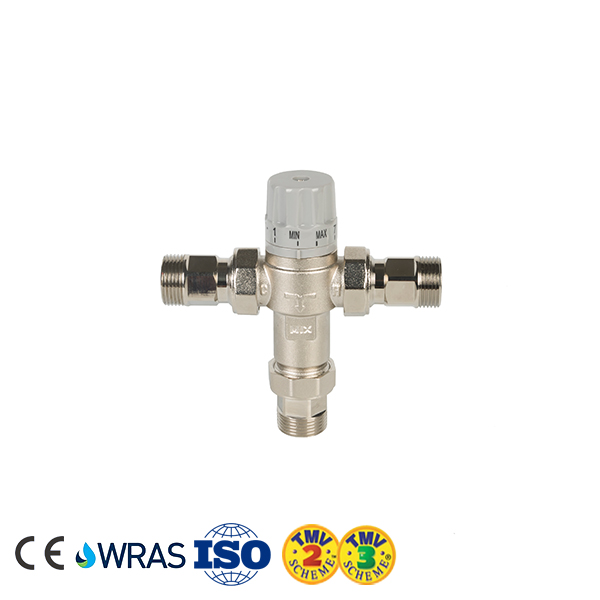

Thermostatic Mixing Valve for Temperature Control
This thermostatic mixing valve blends hot and cold water to ensure a safe and constant outlet temperature. It automatically reduces hot water flow if the cold water supply fails, preventing scalding.
Technical Specifications
Product Overview
Safety-Critical Thermal Regulation
These thermostatic mixing valves are designed to deliver water at a constant, safe temperature, specifically preventing scalding in vulnerable settings like healthcare facilities, schools, and homes. Engineered with a robust failsafe mechanism, the valve automatically interrupts flow in the event of a cold or hot water supply failure. Built to meet stringent international safety standards, this device offers reliable performance across both residential and high-demand commercial applications.
Technical Specifications
Operational Performance
10 bar
Max Working Pressure
0.2 bar
Min Dynamic Pressure
85 °C
Max Inlet Temperature
4 l/m
Min Flow for Stability
- Temperature Control
- 30 to 50°C
- Temperature Accuracy
- ±2°C
Compliance & Certification
- Industry Standards
- TMV3 SchemeTMV2 SchemeBS7942:2000BS EN 1111:2017BS EN 1287:2017NHS D08
Construction Details
Material Specifications
| Component | Material | Grade |
|---|---|---|
| Body | DZR - chrome plated | CW602N |
| Springs | Stainless steel | - |
| Seals | EPDM | - |
