Tank Calibration System
This tank calibration system automatically generates volume charts, eliminating manual operations. It offers high-speed measurement and supports both oil loading and unloading for creating volume charts.
Technical Specifications
Overview
Automated Tank Calibration Solution
This advanced tank calibration system provides a fully automated method for generating highly accurate volume charts for fuel storage tanks. It eliminates manual operation errors and significantly reduces calibration time, completing a 30 CBM tank in less than two hours. The system supports both loading and unloading processes, ensuring versatile application for various industrial and station requirements.
Performance Metrics
Key Performance Metrics
0.3 %
Volume Chart Error
2 h
Calibration Time (30 CBM)
30 pts
Min. Interruption Points
System Features
Core System Advantages
- Automatic volume chart generation without manual operation
- Bi-directional calibration (oil loading or unloading)
- Powerful data save mechanism to prevent loss
- Real-time measurement of oil height and refueling data
- Automatic system shutdown when oil reaches final height
Hardware & Software

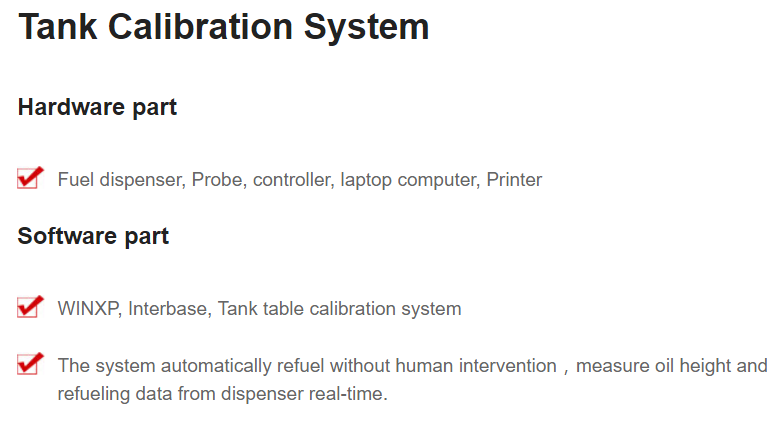

- Hardware Components
- Fuel DispenserProbeControllerLaptop ComputerPrinter
- Software Environment
- WINXPInterbaseTank Table Calibration System
Data Management
Export Formats
WordExcelTXT
Operational Parameters
Required Input Parameters
- Tank Number and Capacity
- Tank Diameter (max error 5cm)
- Deviation offset
- Collection mode (refueling/defueling)
- Final height
- Product type
- Measurement mode (intermittent refueling)
Truck Tank Calibration Requirements
| Parameter | Requirement |
|---|---|
| Minimum Gaugeable Nadir | Not less than 100mm |
| Recommended Nadir Setup | 200mm |
| Refueling Height Increment | Less than 1/30 of final height |
